PRODUCT OVERVIEW
1.Plug-and-Play DIP Pairing for Faster Project Deployment
- Faster installation
- Lower labor costs
- Easier maintenance for field technicians
2.Long-Range 5.8GHz Wireless Transmission for HD Surveillance
- Reliable video transmission
- Reduced cable installation cost
- Suitable for large surveillance areas
3.Stable 5.8GHz Connectivity with Reduced Interference
- More reliable wireless performance
- Reduced video delay and packet loss
- Better performance in complex environments
4.Industrial Outdoor Design with IP65 Weather Protection
- Reliable operation in harsh environments
- Longer product lifespan
- Suitable for outdoor security projects
5.48V PoE Power Supply for Flexible Installation
- Lower installation complexity
- Reduced cabling cost
- Easier deployment for large projects
DIP1526-HW-48 5.8GHz Long Range Wireless Bridge for Surveillance Applications
The DIP1526-HW-48 is a professional 5.8GHz outdoor wireless bridge designed for reliable IP camera transmission in locations where wired network installation is difficult, expensive, or time-consuming.

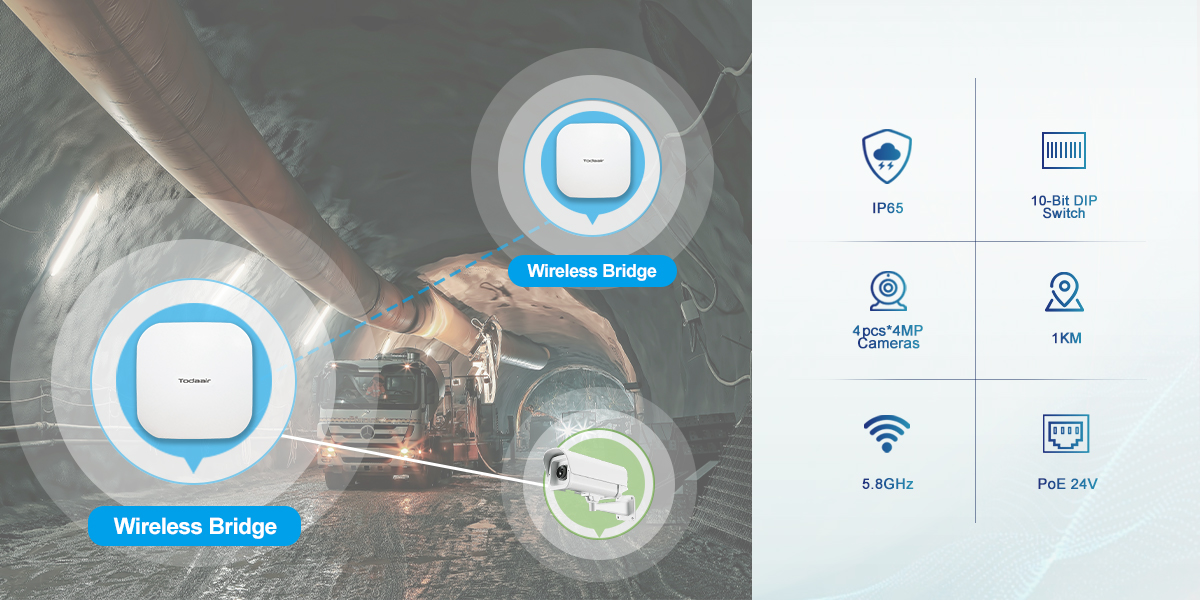

With long-range wireless connectivity, fast DIP switch pairing, and industrial-grade outdoor protection, it enables quick deployment for surveillance projects in warehouses, factories, construction sites, and other demanding environments.
Supporting wireless throughput up to 150Mbps, 48V PoE power supply, and stable point-to-point or point-to-multipoint communication, the DIP1526-HW-48 provides an efficient networking solution for security integrators, installers, and project contractors.

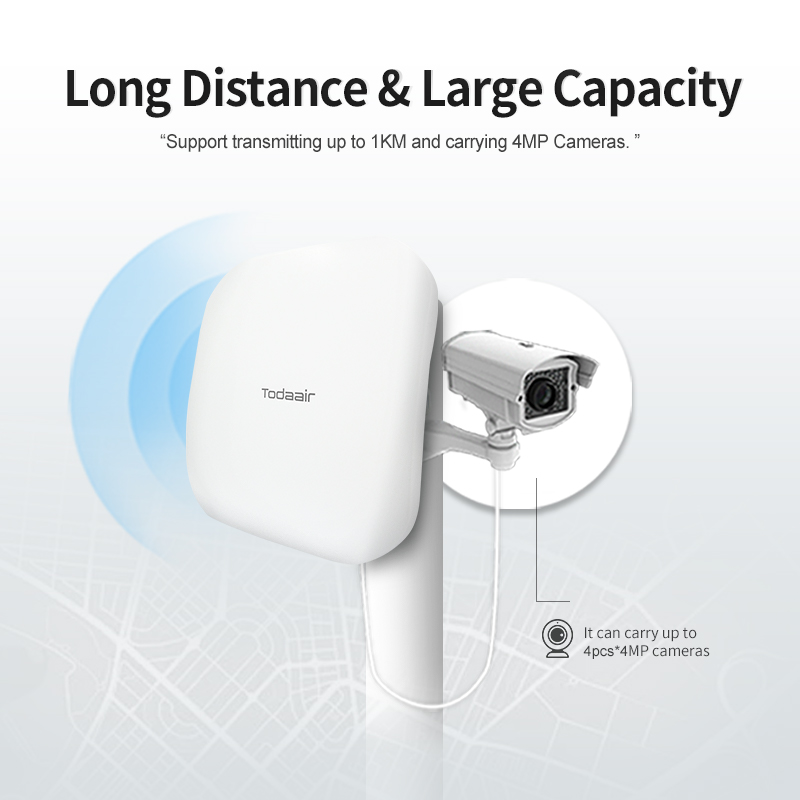

l Designed for 1km wireless surveillance transmission, the system delivers up to 150Mbps wireless throughput with a 12dBi high-gain antenna and 25dBm transmission power.
It provides strong transmission capability and excellent receiving sensitivity for stable HD video streaming, supporting connectivity with up to four 4MP IP cameras.
l Reliable 5.8GHz Wireless Performance
Operating on the 5.8GHz frequency band, the system provides wider bandwidth, cleaner channels, and reduced interference to maintain reliable wireless transmission quality.
It is suitable for surveillance projects where stable connectivity and continuous video transmission are required.
l Rugged Outdoor Housing for Harsh Environments
The device features an IP65-rated waterproof and dustproof enclosure with UV-resistant housing.
Designed to operate from -30°C to 65°C, it provides reliable performance in outdoor environments affected by rain, dust, sunlight, and temperature fluctuations.
l Fast Deployment with DIP Configuration
The 10-digit DIP switch enables plug-and-play deployment with 128 configurable groups for easy PTP/PTMP pairing.
No computer-based configuration is required, helping installers reduce setup time and improve project efficiency.
lPoE Installation and Remote Management Capability

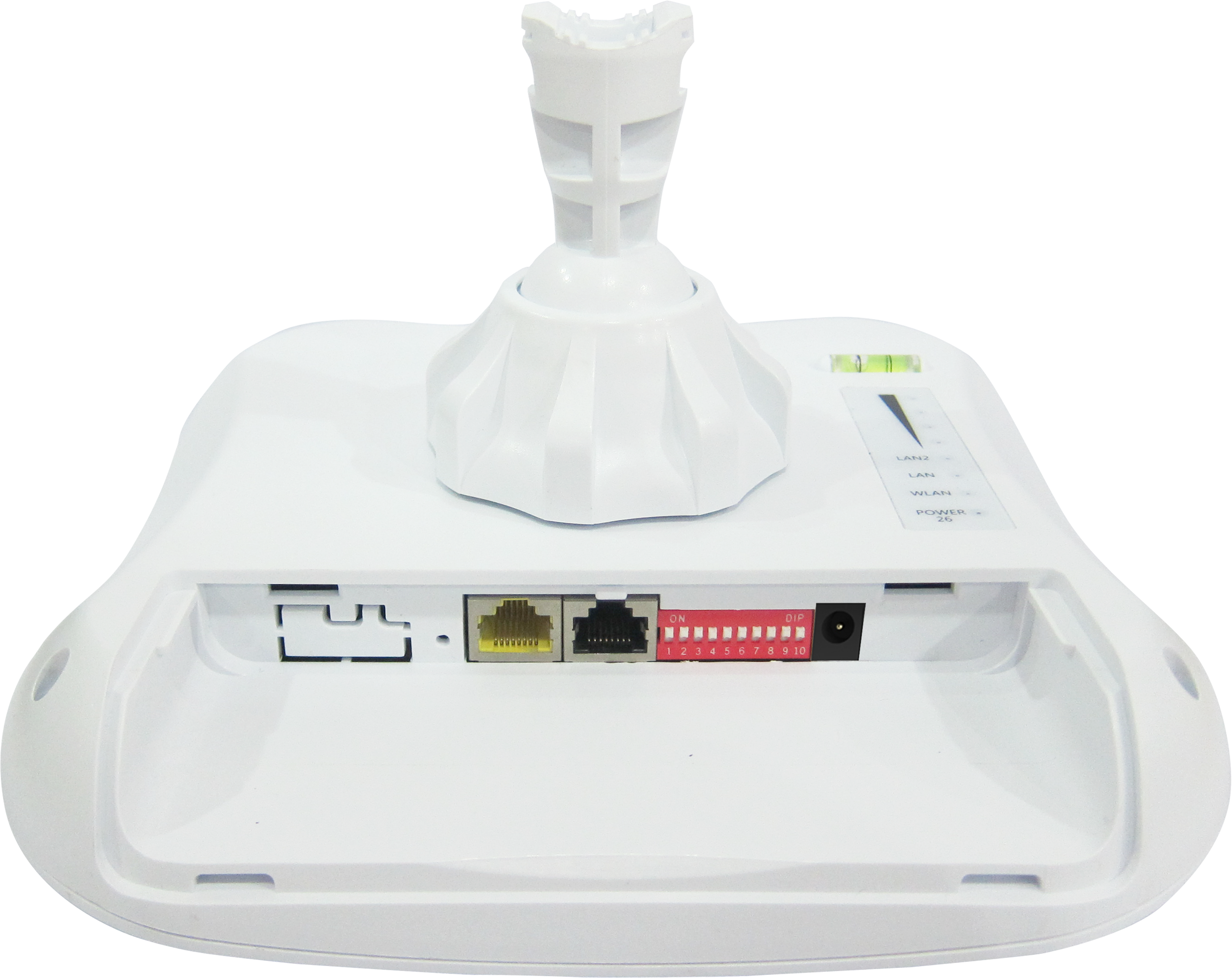

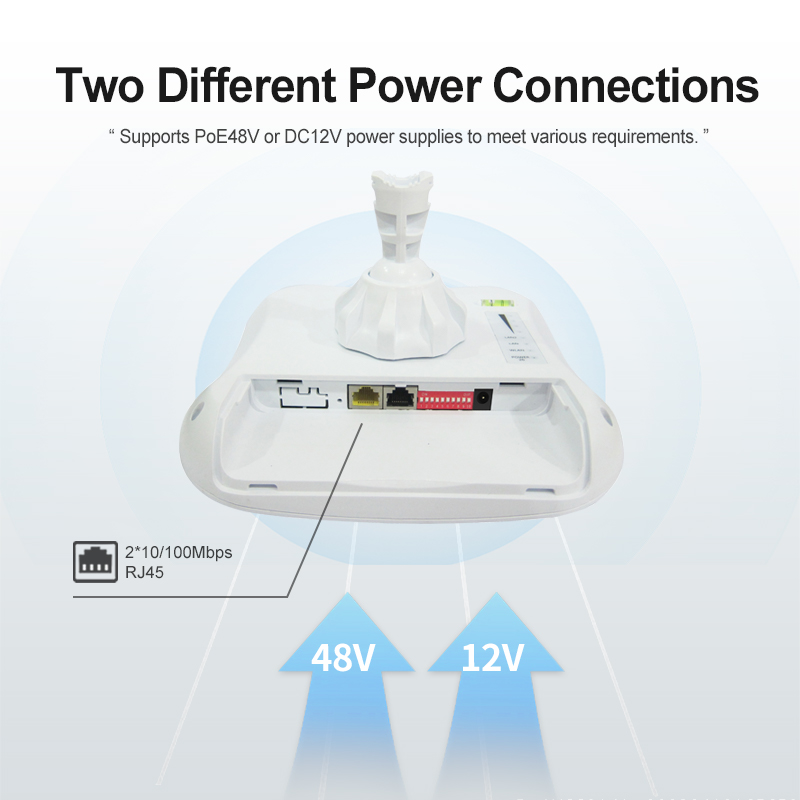

The device includes 2 × 10/100Mbps RJ45 ports and supports 48V PoE or DC 12V power input.
The integrated PoE function simplifies installation by combining power and data transmission through one Ethernet cable.
l The system is also compatible with Todaair APP for centralized device management, including network status monitoring and topology visualization.
Looking for a reliable wireless bridge solution for your surveillance or networking project?
Contact Todaair at [email protected] for product information, customization options, and project support.
| Pole-Mount | |
 |
 |
|
1 Align the universal joint bracket with the lock ring, ensuring the lock ring threads face the ball joint. Insert and rotate clockwise to engage. |
2 Open the metal strap, thread it through the bracket base, and secure with the provided fastener. |
 |
 |
|
3 Wrap the metal strap around the pole. Use a screwdriver to tighten the screw clockwise until the strap is firmly secured. |
4 Attach the device to the universal joint bracket. Hand-tighten the lock ring to secure while maintaining slight looseness for pivot adjustment. |
| Wall-Mount | |
|
 |
|
1 Align the universal joint bracket with the lock ring, ensuring the lock ring threads face the ball joint. Insert and rotate clockwise to engage. |
2 Mount the wall plate to the surface using provided screws. Then fasten the universal joint bracket to the wall plate with additional screws. |
 |
|
|
3 Securely fasten the wall mount plate to a load-bearing wall using appropriate anchors. |
4 Attach the device to the universal joint bracket. Hand-tighten the lock ring to secure while maintaining slight looseness for pivot adjustment. |
