PRODUCT OVERVIEW
1. Reliable 1km Wireless Transmission for HD Surveillance
2. Fast Pairing for Easy Installation and Deployment
3. Stable 5.8GHz Wireless Performance with Low Interference
4. Outdoor IP65 Protection with Industrial Reliability
5. Flexible PoE Deployment with Remote Management

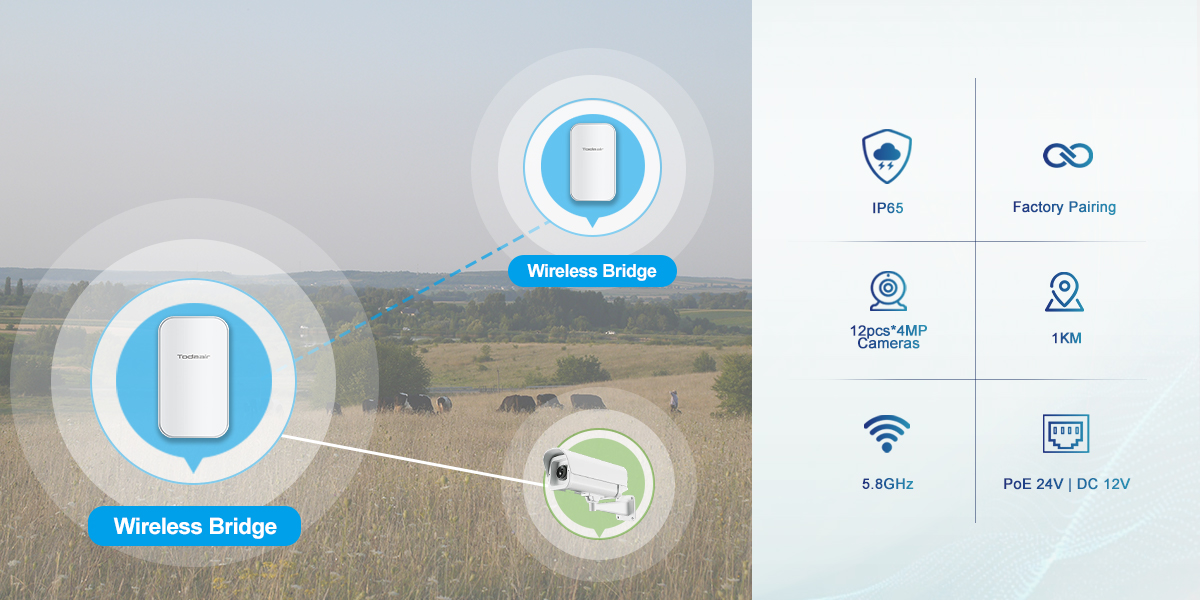

TD9520F-YP is a professional 5.8GHz outdoor wireless bridge designed for reliable long-distance wireless transmission in video surveillance and industrial networking applications.
With factory pre-configured pairing, the device enables quick deployment without complicated setup or login configuration. It delivers wireless speeds up to 867Mbps and supports stable HD video transmission over distances up to 1km.
Featuring a high-gain antenna, powerful transmission capability, and an IP65 weather-resistant enclosure, TD9520F-YP provides a reliable wireless connection solution for warehouses, factories, construction sites, parking areas, and other outdoor surveillance applications.
lDesigned specifically for outdoor security applications, TD9520F-YP provides wireless transmission coverage up to 1km with speeds up to 900Mbps.
Equipped with a 10dBi high-gain antenna and 23dBm transmission power, it delivers excellent signal strength and receiving sensitivity, supporting stable HD video transmission for surveillance systems.
l 5.8GHz High-Speed Wireless Technology
Operating on the 5.8GHz frequency band, the wireless bridge provides higher available bandwidth and reduced interference compared with crowded wireless bands.
It ensures stable and reliable connectivity for mission-critical applications including:
IP surveillance systems/Factory monitoring/Warehouse security/Outdoor network extension/Remote video transmission
l IP65 Weatherproof Design for Outdoor Applications
Built with an IP65-rated waterproof and dustproof enclosure, TD9520F-YP is designed for long-term outdoor operation.
The UV-resistant housing and wide operating temperature range from -30°C to 65°C allow reliable performance under various environmental conditions, including: Heavy rain/Snow/Strong sunlight/Extreme temperature changes

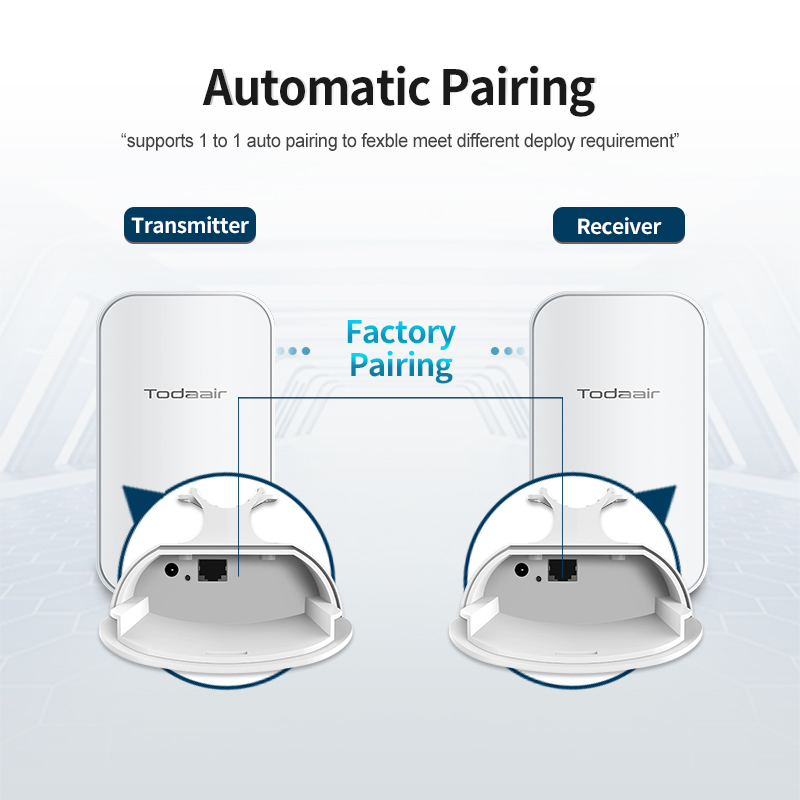

l Plug-and-Play Auto Pairing Design
The wireless bridge supports automatic 1-to-1 pairing after power-on.
No complicated configuration process is required, allowing installers to complete deployment faster and reduce technical support requirements during installation.

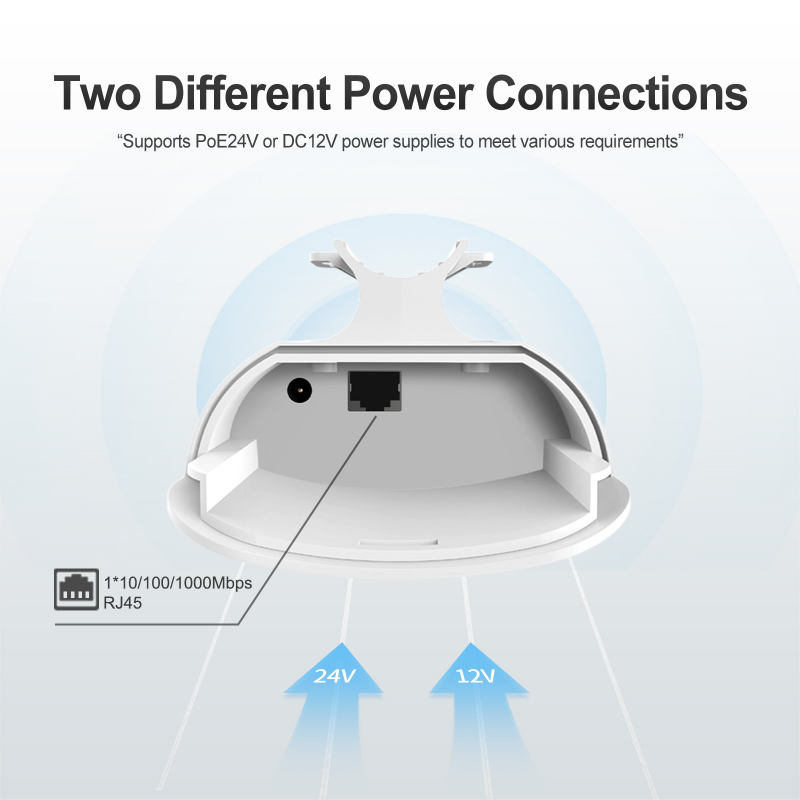

l PoE Power and Flexible Installation Options

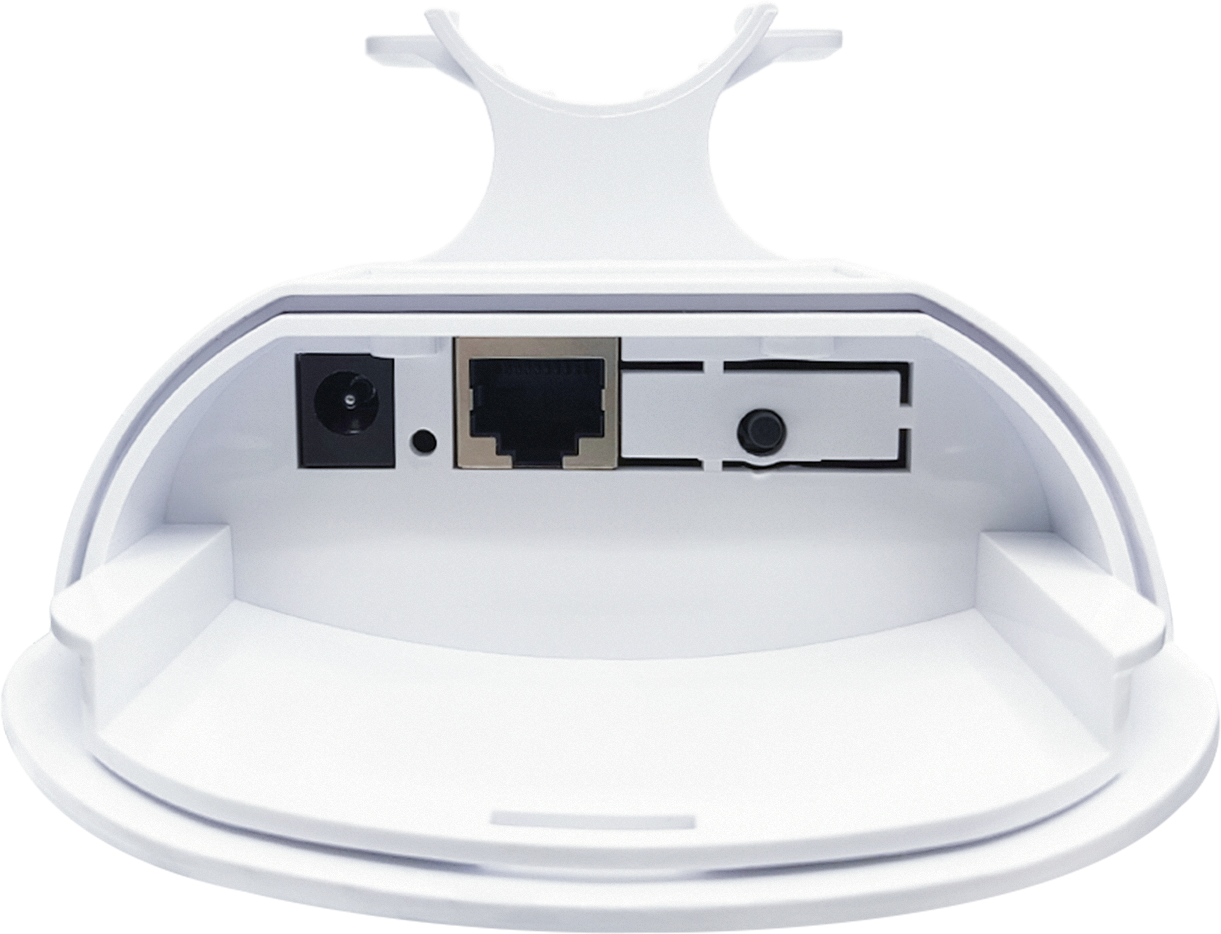

TD9520F-YP features one 10/100Mbps RJ45 Ethernet port and supports 12V PoE and DC power input.
The integrated PoE design allows power and data transmission through a single Ethernet cable, reducing wiring costs and improving installation flexibility.
l Smart Remote Management with Todaair APP
Compatible with Todaair APP and WEB management platform, TD9520F-YP enables convenient remote device management.
Users can access:
Real-time network topology/Device status monitoring/Remote configuration/Network optimization tools
This helps installers and project managers improve maintenance efficiency and reduce onsite service costs.
Looking for a reliable 5.8GHz wireless bridge solution for your security or networking projects?
Contact Todaair for product specifications, pricing, OEM cooperation, and project support.
