DIP4530-H

Outdoor Wireless Bridge

The 5.8GHz wireless bridge with 450Mbps rates by Todaair. The transmitting distance is up to 1KM. It is suitable in parks, reservoirs, pastures and manors and other outdoor cameras surveillance scenarios since it is IP65 protection.

Download DocumentsRequest Quote
DIP4530-H

PRODUCT OVERVIEW

The 5.8GHz wireless bridge with 450Mbps rates by Todaair. The transmitting distance is up to 1KM. It is suitable in parks, reservoirs, pastures and manors and other outdoor cameras surveillance scenarios since it is IP65 protection.
  • With 10-bit DIP switches to paired easily and efficiently
  • With 5.8GHz frequency to be achieved better transmitting quality

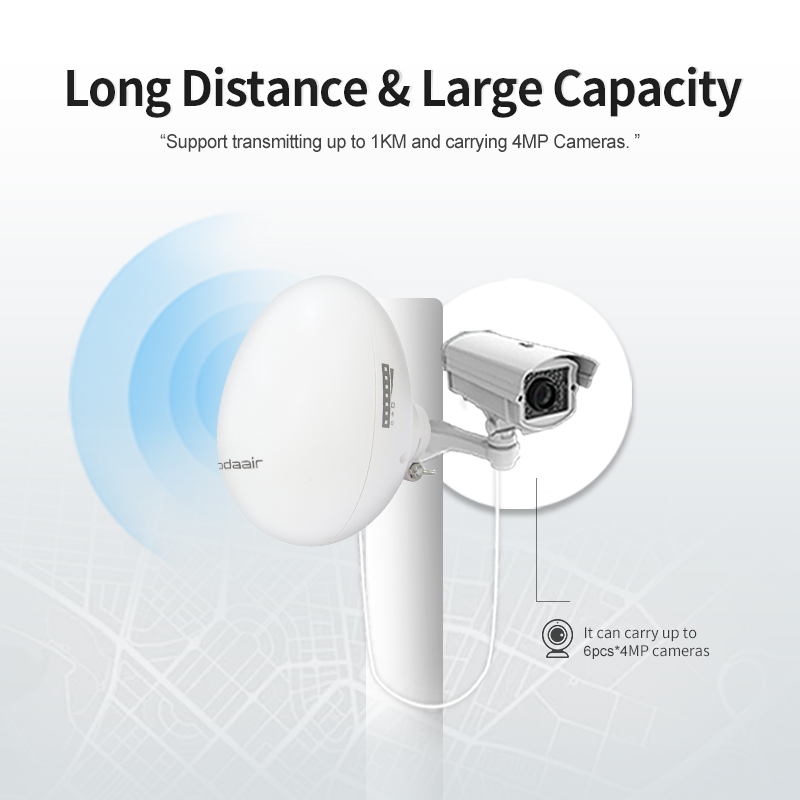

  • Support transmitting up to 1km and carrying 4MP cameras
  • With IP65 UV-resistant housing

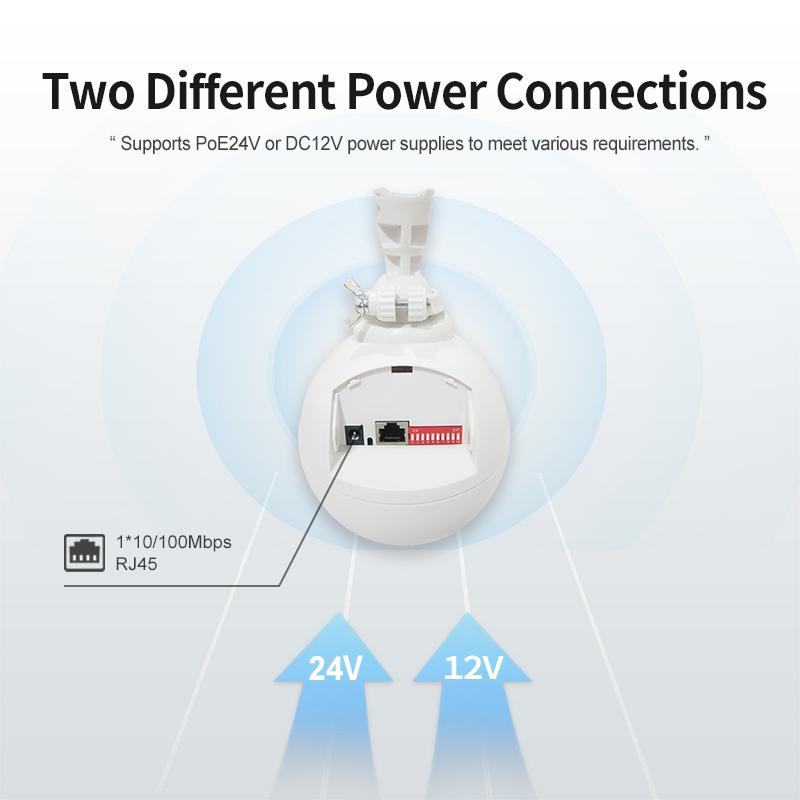

  • Supports PoE 24V or DC 12V power supplies to meet various requirements

l Dedicated for 1km surveillance transmission, delivering wireless speeds up to 450Mbps, the system is equipped with 16dBi high-gain antennas and 23dBm transmission power. It ensures superior transmission capability and reception sensitivity for high-capacity HD video streaming, supporting connectivity for 12pcs*4MP HD cameras.



l This wireless system operates on the 5.8GHz high-frequency band, delivering wider bandwidth, cleaner channels, and reduced interference to ensure reliable transmission quality for mission-critical applications.

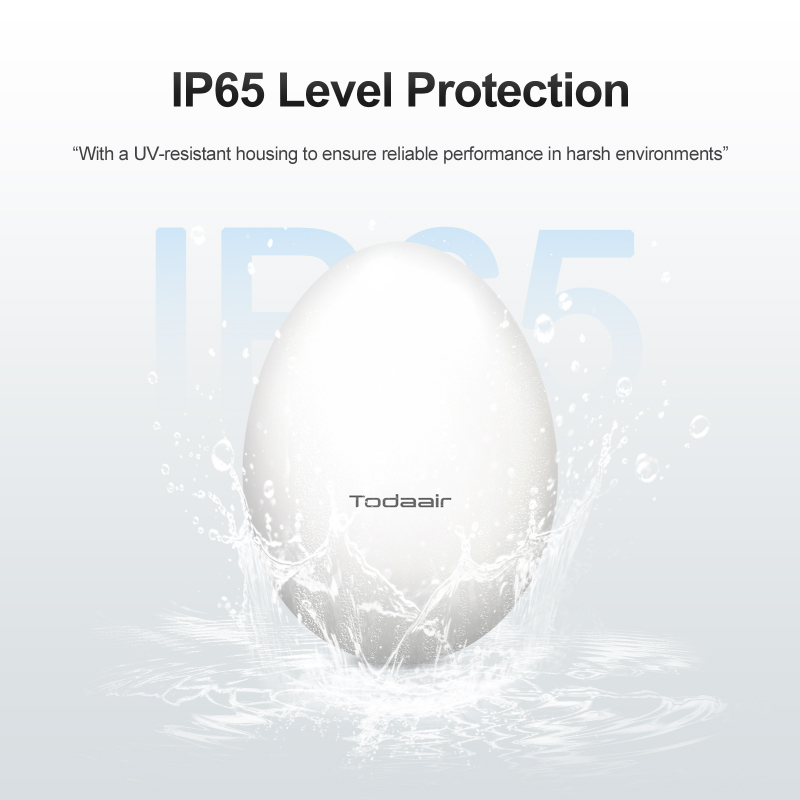

l The device features an IP65-reted waterproof and dustproof enclosure with UV-resistant housing. Designed to operated in temperatures ranging from -30°C to 65°C, it withstands various extreme weather conditions such as heavy rain, snowstorms, extreme heat, and even lightning strikes, thus ensuring reliable performance in harsh environments.





l The 10-digit DIP switch enables plug-and-play deployment, providing 128 configurable groups for seamless PTP/PTMP pairing. This eliminates PC-dependent configuration, reducing installation time by up to 90%.

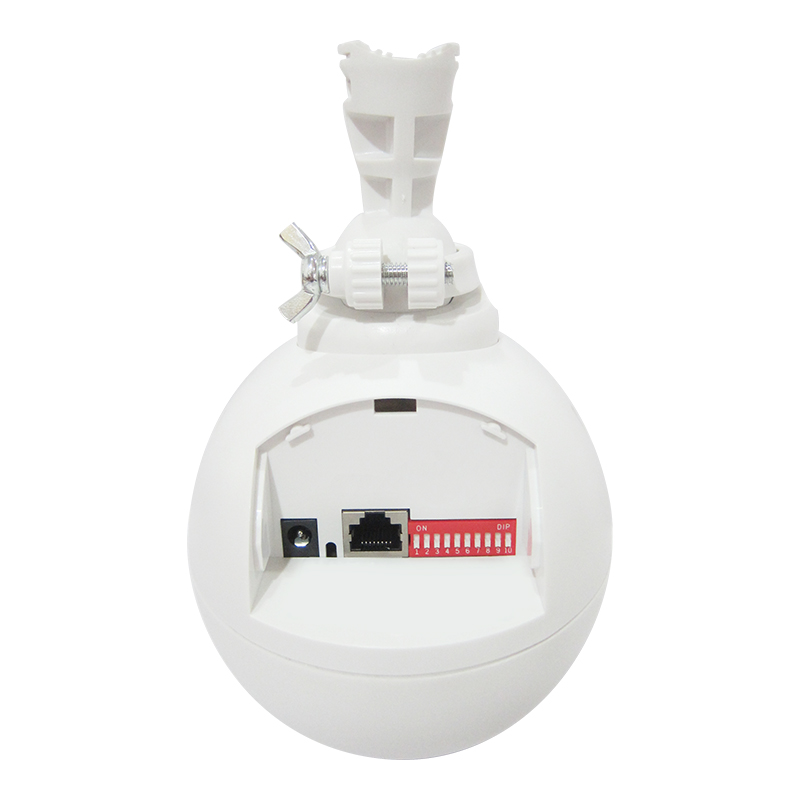

l The device includes one 10/100Mbps RJ45 port for high-speed data throughput, supporting PoE 24V or DC 12V power input. Its integrated PoE capability reduces cabling costs by transmitting power and data over a single Ethernet cable, which enables flexible deployment in various scenarios.



l The system is compatible with Todaair APP for centralized remote management. The application delivers real-time network topology visualization, comprehensive device status monitoring, and detailed operational analytics. Its one-click network optimization feature enables prompt response to maintenance requirements.





Pole-Mount

1 Route the strap through the lower slot of the universal joint bracket, then secure it by bucking.

2 Wrap the strap around the pole, then use a screwdriver to tighten the mounting screw.

3 Align the device’s mounting interface with the universal joint bracket. Insert the bracket assembly into the lock ring, ensuring the device back contacts the ring surface.

4 Securely tighten the fixing screw, while maintaining 0.5-1mm axial play in the lock ring for pivot adjustment.




Wall-Mount
1 Secure the wall mount plate using the anchor bolts. Attach the universal joint bracket to the plate with the screws.

2 Securely fasten the wall mount plate to a load-bearing wall using appropriate anchors.

3 Attach the device to the universal joint bracket. Inset the bracket into the lock ring with the device’s back surface facing outward.

4 Securely fasten the positioning screw while maintaining 0.5-1mm axial clearance on the lock ring to enable device pivoting.
