PRODUCT OVERVIEW
1. Long Range Wireless Transmission up to 3km
provides stable wireless connectivity up to 3km under line-of-sight conditions, helping projects avoid expensive cable installation in large outdoor areas.
It is ideal for connecting remote surveillance cameras, buildings and monitoring points.
2. Fast DIP Switch Pairing for Easy Deployment
The built-in DIP configuration allows installers to quickly complete wireless pairing without accessing complicated network settings.
This plug-and-play design helps reduce installation time and simplifies project deployment.
3. Reliable 5.8GHz Wireless Performance
Operating on the 5.8GHz frequency band, the wireless bridge provides cleaner channels, reduced interference and stable transmission performance for professional CCTV applications.
4. Outdoor IP65 Protection Design
The IP65-rated housing protects against water, dust and sunlight exposure.
With strong environmental adaptability, DIP3526-HW-48 is suitable for factories, construction sites and other outdoor surveillance projects.

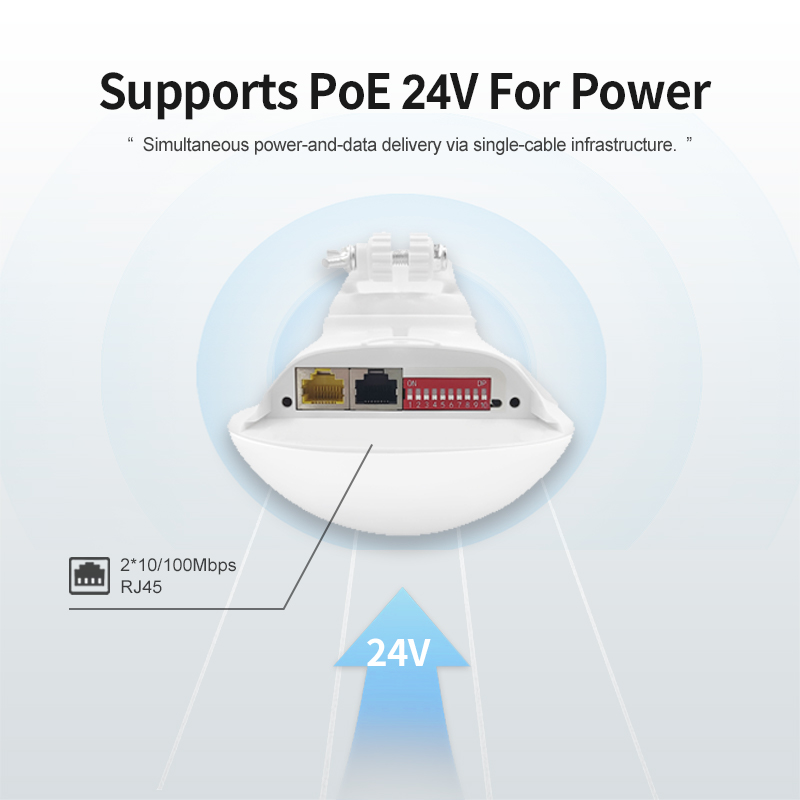

5. PoE Powered Installation for Flexible Deployment
Supporting PoE 24V power supply, the device enables simplified installation by reducing additional power cabling requirements.
This makes it easier for installers to deploy wireless links in remote locations.
3km 5.8GHz Wireless Bridge with DIP Configuration, IP65 Protection and Easy PoE Installation

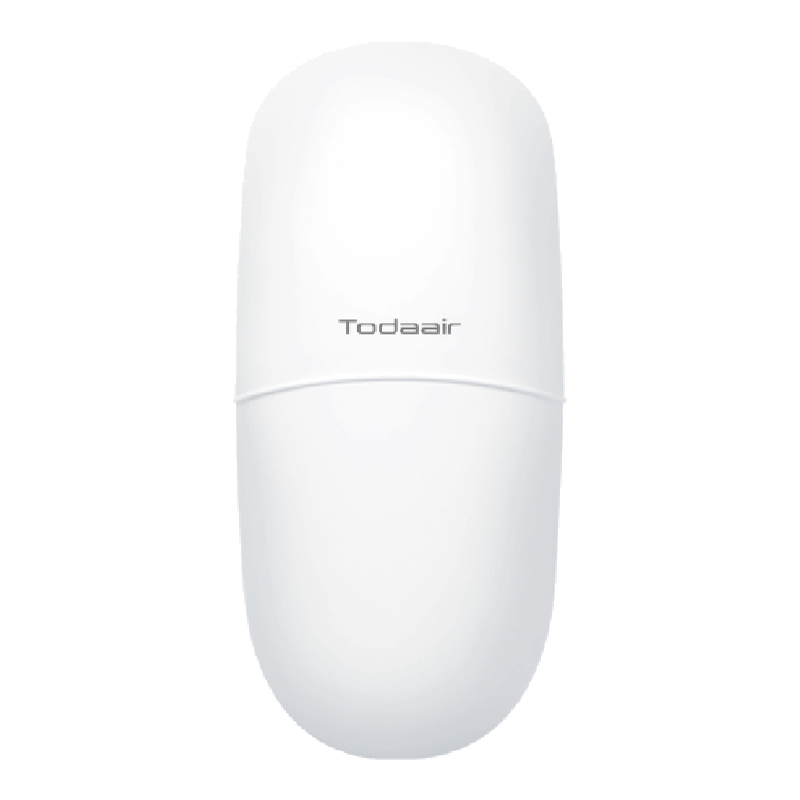

DIP3536-H is a professional 5.8GHz long range wireless bridge designed for outdoor CCTV transmission, security monitoring and industrial network expansion.

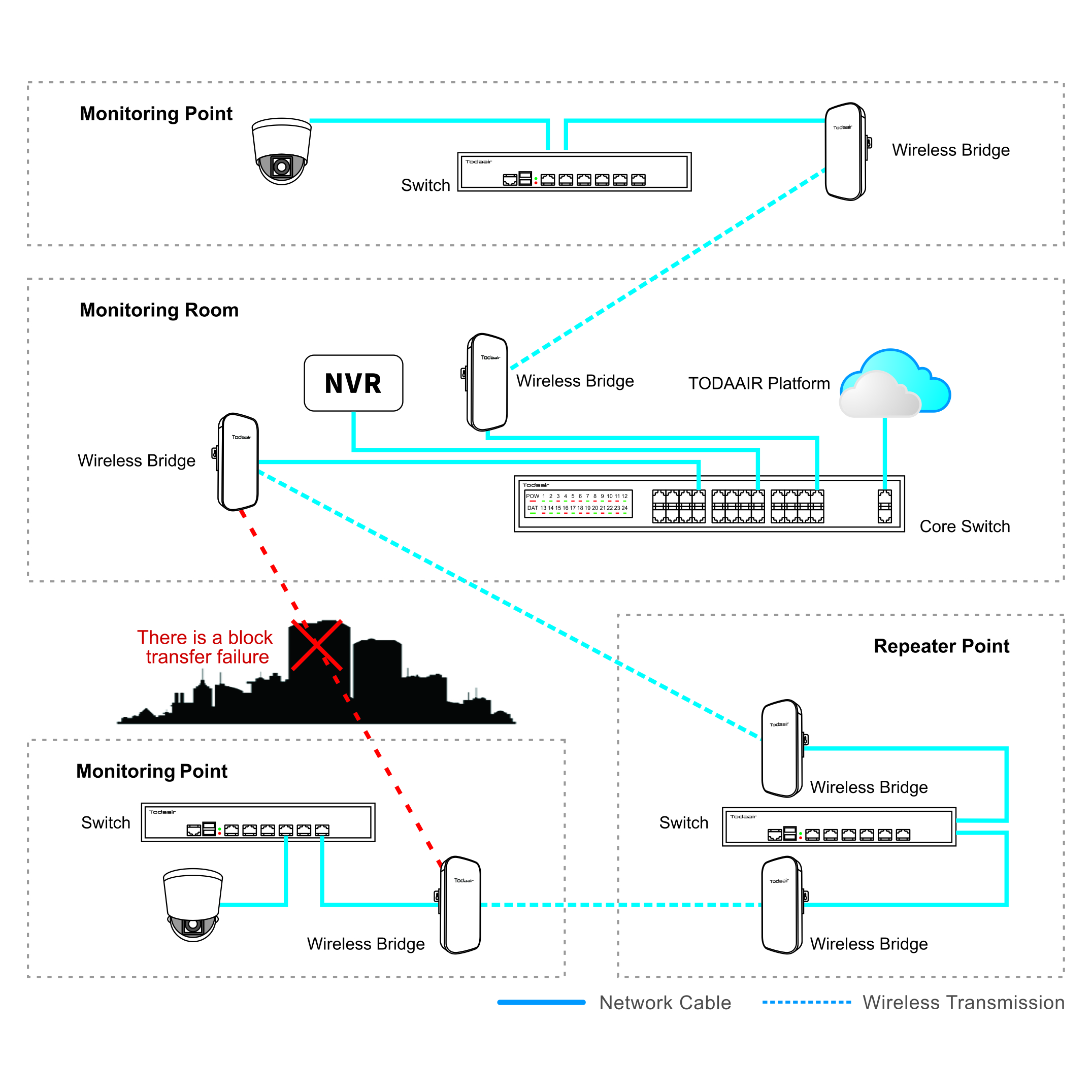

Featuring DIP switch configuration, the device enables fast point-to-point (PTP) and point-to-multipoint (PTMP) deployment without complicated software setup, making it an efficient solution for installers and system integrators.
With wireless transmission up to 3km, high-gain antennas and optimized RF performance provide stable connectivity for HD surveillance cameras in factories, warehouses, construction sites and other large outdoor areas.
The IP65-rated weather-resistant enclosure protects the device from rain, dust and UV exposure, ensuring reliable operation in demanding outdoor environments.
l3km Wireless Bridge for Professional Surveillance
Designed for outdoor security projects, DIP3536-H provides reliable wireless transmission up to 3km.
With 16dBi high-gain antennas and 25dBm transmission power, it delivers strong signal coverage and stable connectivity for HD video surveillance.
l Stable 5.8GHz Wireless Transmission
The 5.8GHz wireless band provides cleaner channels and improved interference resistance compared with crowded wireless environments.
It ensures stable data transmission for security monitoring and industrial applications.

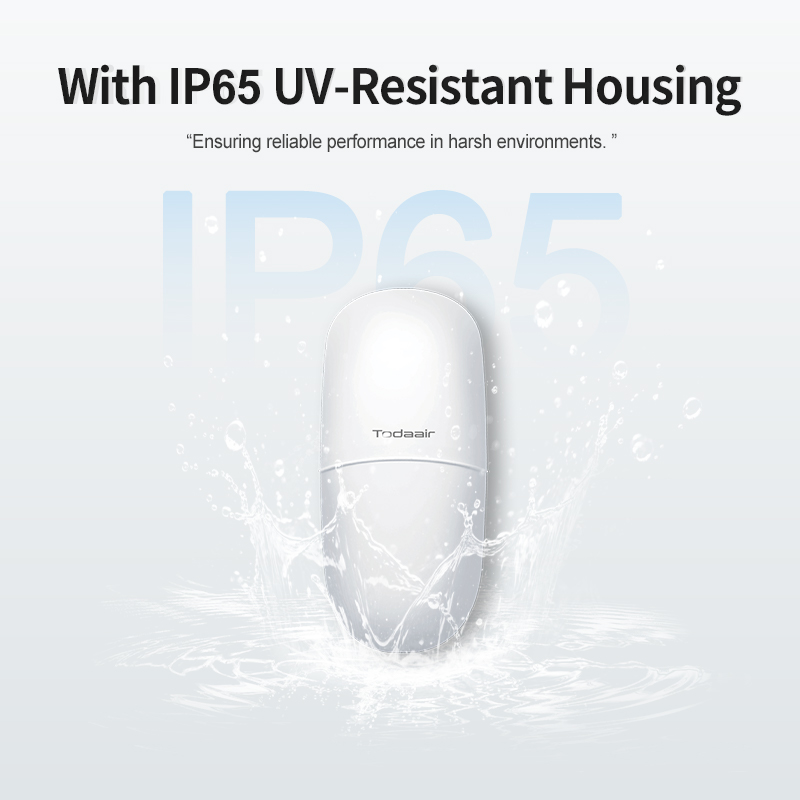

lDurable Outdoor Housing for Harsh Environments
The device features an IP65-rated waterproof and dust-resistant enclosure with UV-resistant housing.
Designed for outdoor deployment, it supports reliable operation in changing weather conditions.

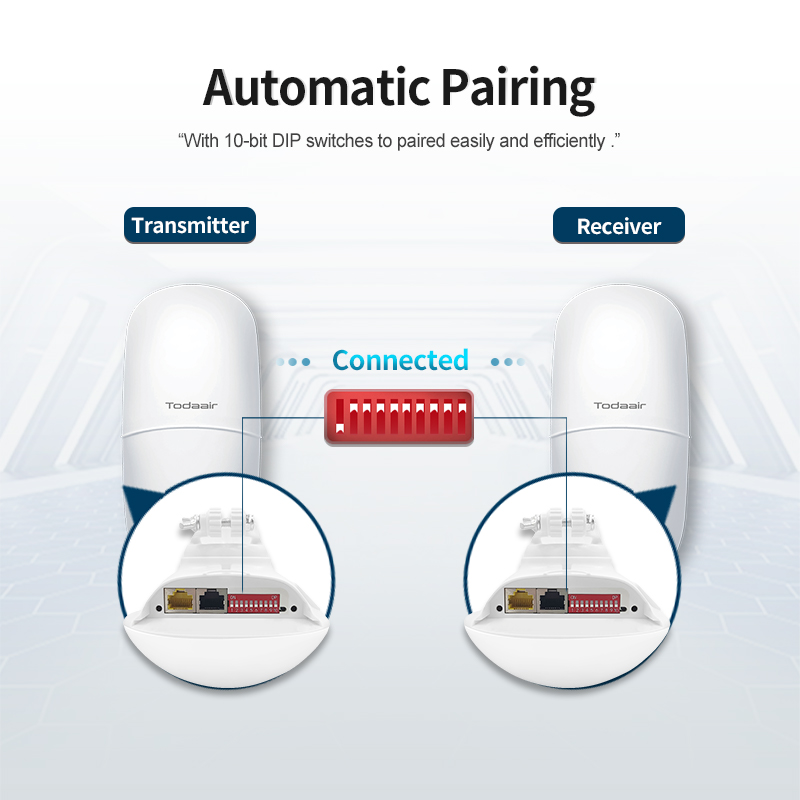

lPlug-and-Play DIP Configuration
The DIP switch design allows quick pairing between wireless bridge devices without PC-based configuration.
This helps installers reduce setup complexity and improve deployment efficiency.
lFlexible Power and Network Deployment
DIP3536-H supports PoE power input and Ethernet connectivity, providing a simple installation method for outdoor wireless projects.
l The system is compatible with Todaair APP for centralized remote management.
The application delivers real-time network topology visualization, comprehensive device status monitoring, and detailed operational analytics. Its one-click network optimization feature enables prompt response to maintenance requirements.
Need a Reliable Wireless Bridge for Your Security Project?
Todaair provides professional wireless bridge solutions designed for CCTV installers, system integrators and industrial networking projects.
Contact our sales team:[email protected]
| Pole-Mount | |
 |
 |
|

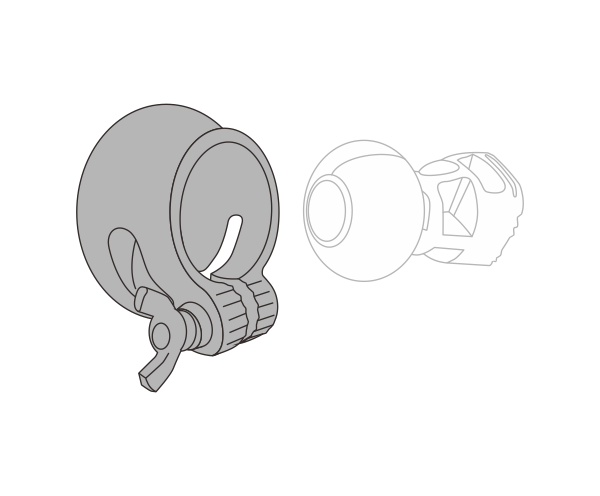

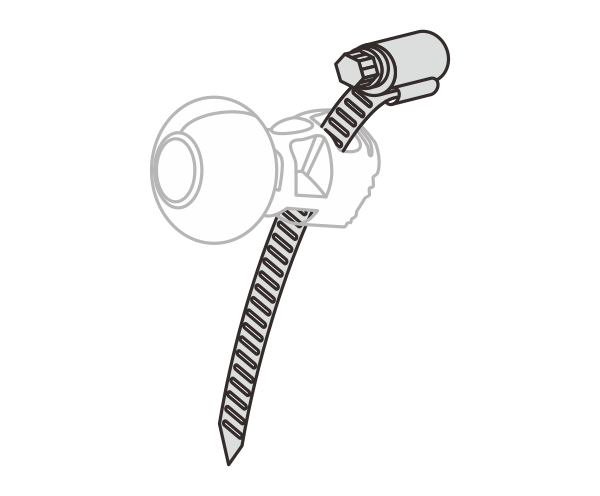

1 Route the strap through the lower slot of the universal joint bracket, then secure it by bucking. |

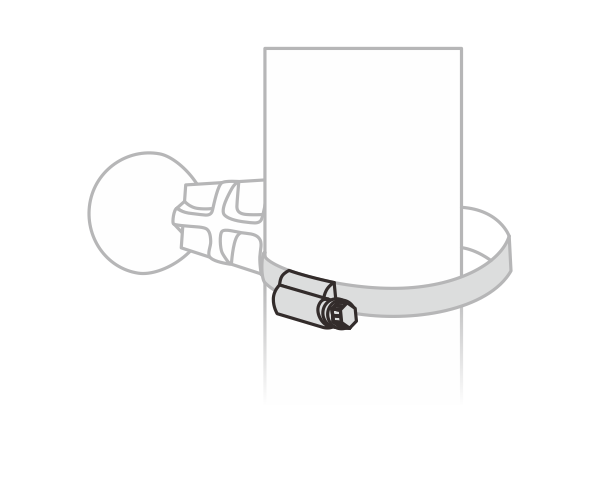

2 Wrap the strap around the pole, then use a screwdriver to tighten the mounting screw. |
 |
 |
|

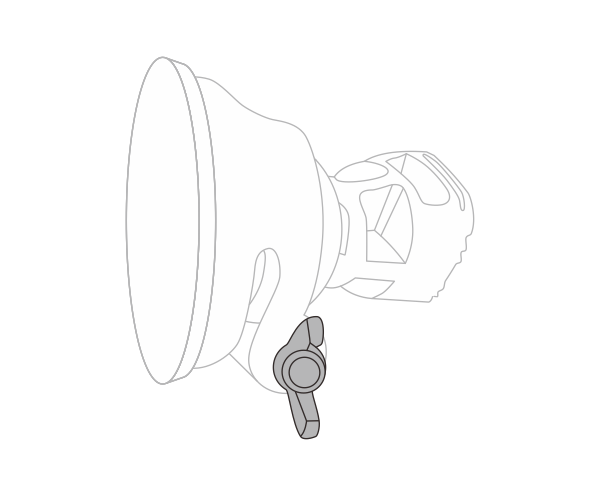

3 Align the device’s mounting interface with the universal joint bracket. Insert the bracket assembly into the lock ring, ensuring the device back contacts the ring surface. |
4 Securely tighten the fixing screw, while maintaining 0.5-1mm axial play in the lock ring for pivot adjustment. |
| Wall-Mount | |
 |
 |

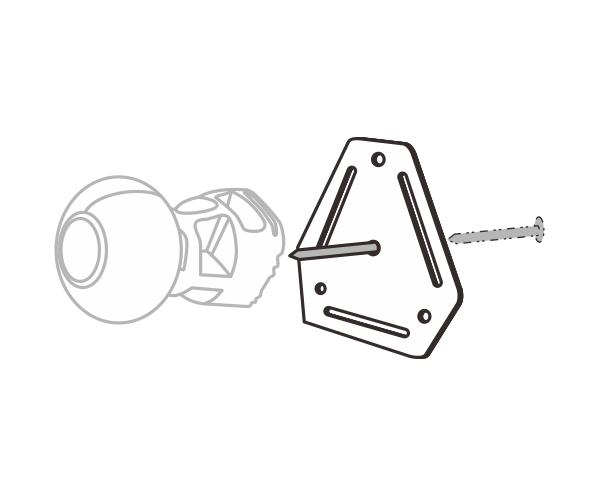

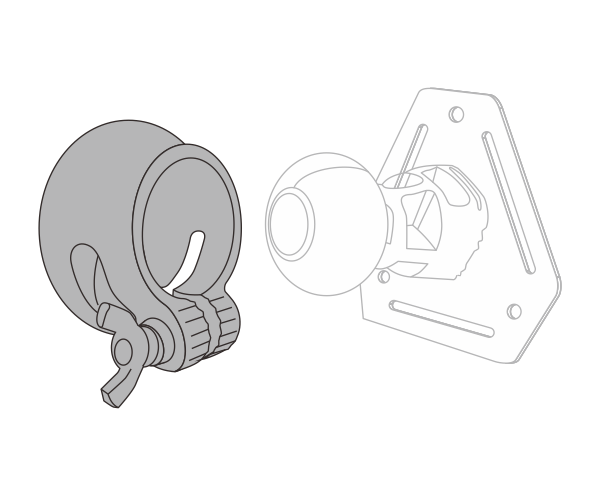

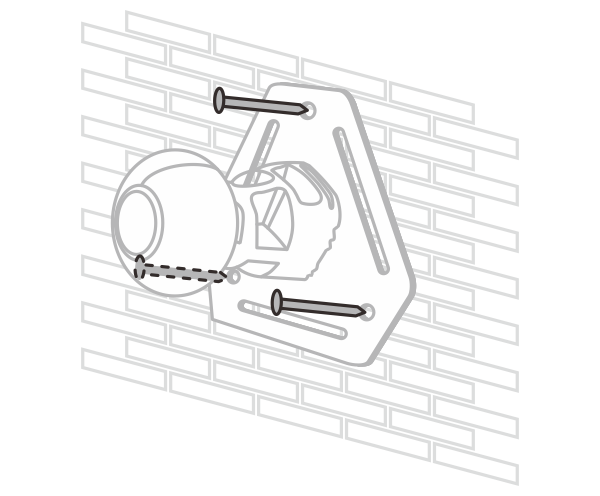

| 1 Secure the wall mount plate using the anchor bolts. Attach the universal joint bracket to the plate with the screws. |
2 Securely fasten the wall mount plate to a load-bearing wall using appropriate anchors. |
 |
 |
|

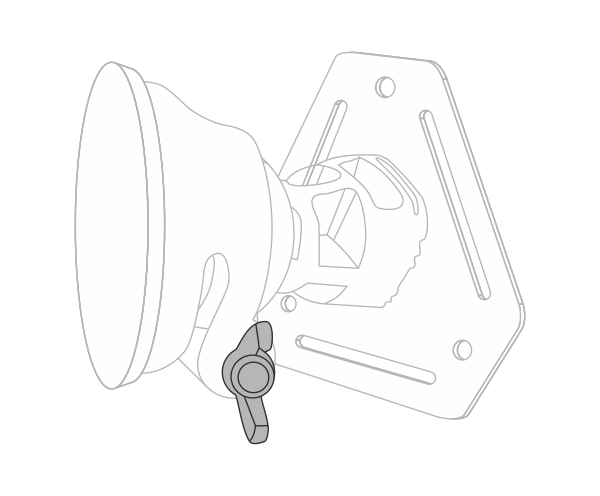

3 Attach the device to the universal joint bracket. Inset the bracket into the lock ring with the device’s back surface facing outward. |
4 Securely fasten the positioning screw while maintaining 0.5-1mm axial clearance on the lock ring to enable device pivoting.
|
