PRODUCT OVERVIEW

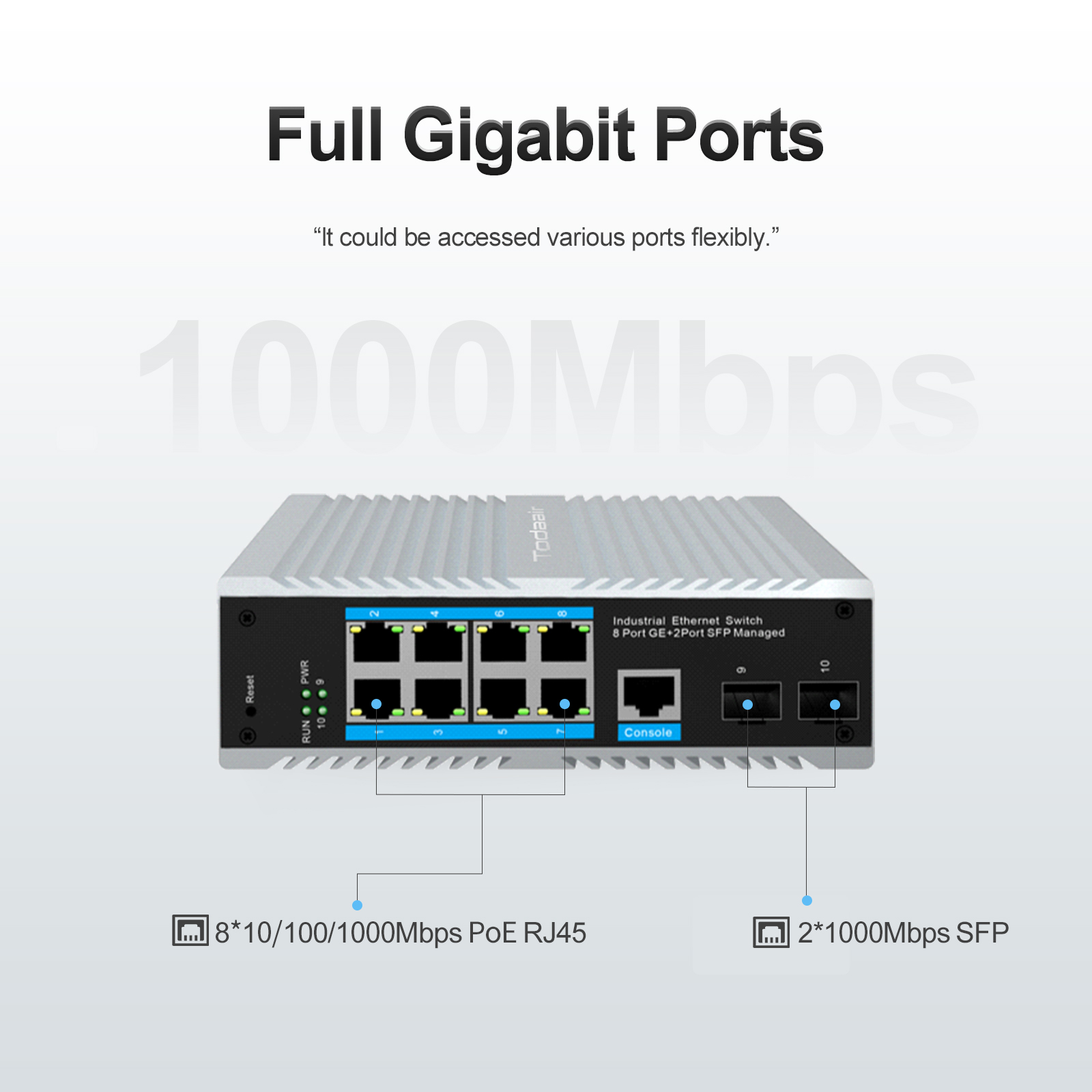

l Multi-interface configuration with 8*10/100/1000Mbps PoE RJ45 and 2*1000Mbps SFP slots. Ports 1-8 comply with IEEE 802.3af/at standards, delivering 48V PoE while supporting MDI/MDIX auto-negotiation and a store-and-forward switching architecture.

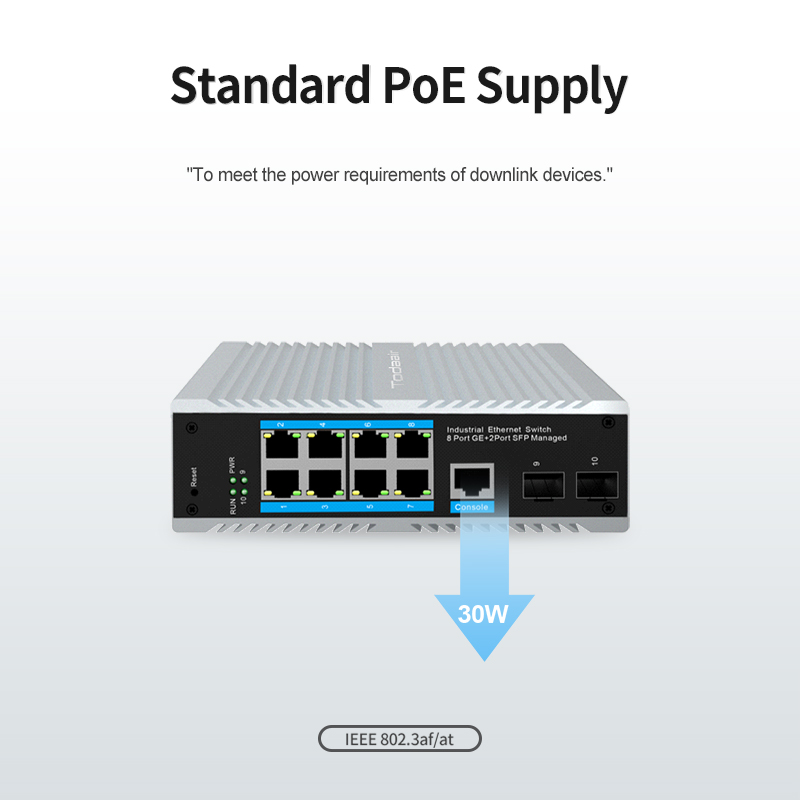

l The advanced PoE power management system complies with IEEE 802.3af/at standards and (30W maximum per port). The over-provisioned power architecture ensures stable power delivery to powered devices (PDs), effectively mitigating power surges caused by burst traffic in high-density deployment scenarios.

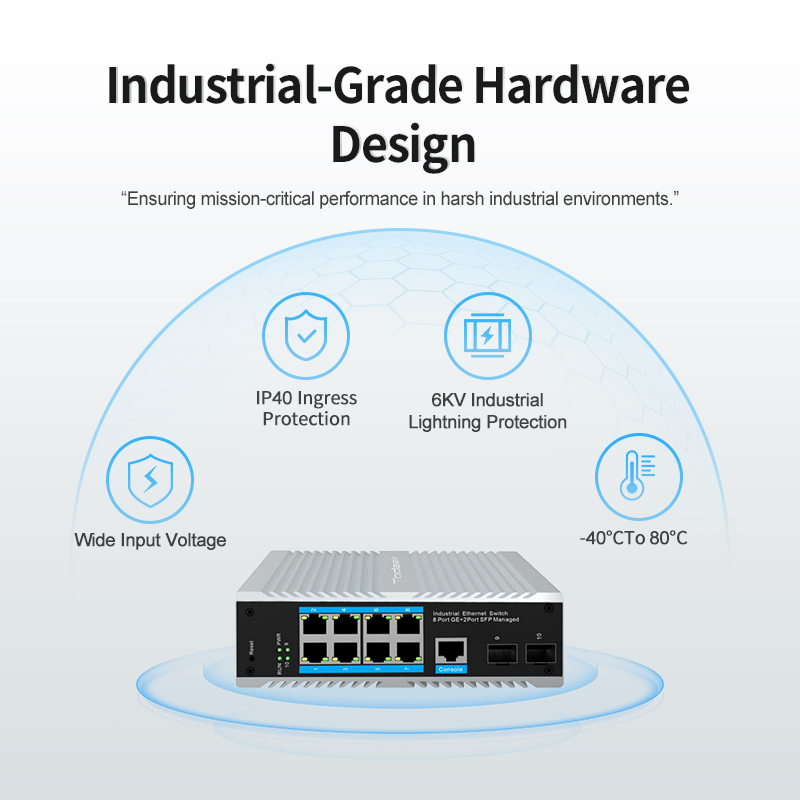

l Industrial-grade hardware design features an aerospace-grade aluminum alloy chassis with integrated thermal dissipation channels. It is certified for IP40 protection and an operational temperature range of -40°C to +80°C(-40°C to +85°C).

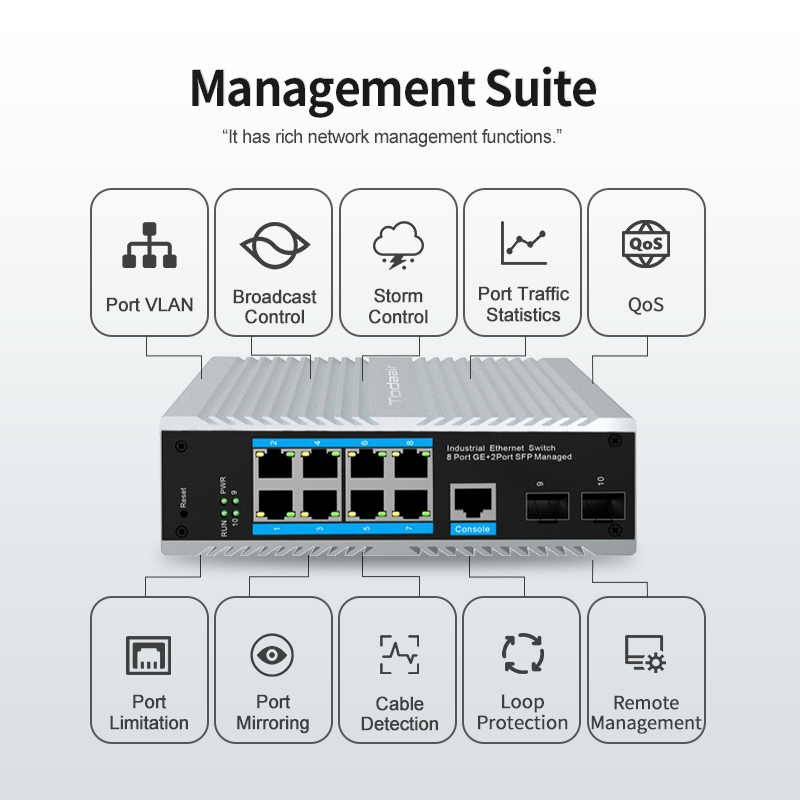

l The Layer 2 management suite supports IEEE 802.1Q VLAN, port-based VLAN, QoS (Quality of Service), broadcast control, storm suppression, port mirroring, port isolation, cable diagnostics, and loop protection.
