TD-SW24G-2GFP

TD-SW24G-2GFP is a cloud managed Gigabit PoE switch featuring 24 PoE ports, 2 Gigabit uplinks, and 1 SFP port. Reliable PoE networking solution with intelligent power management, remote cloud control, and flexible uplink options for security, enterprise, and industrial applications. Ideal for IP cameras, wireless APs, and enterprise network deployments with remote APP and cloud management.

• 24-Port Gigabit PoE Connectivity for High-Density Deployment
• Flexible Uplink with RJ45 and SFP Ports
• Remote Cloud & APP Management
• Intelligent PoE Power Management & Protection
• Advanced Network Management Functions

TD-SW24G-2GFP features a professional full-metal housing design with a compact structure, providing stable performance for enterprise networks, IP surveillance systems, and industrial applications. The front panel integrates multiple Gigabit PoE ports, uplink interfaces, and LED indicators for easy installation and network status monitoring.

l 24-Port Gigabit PoE Interface Design

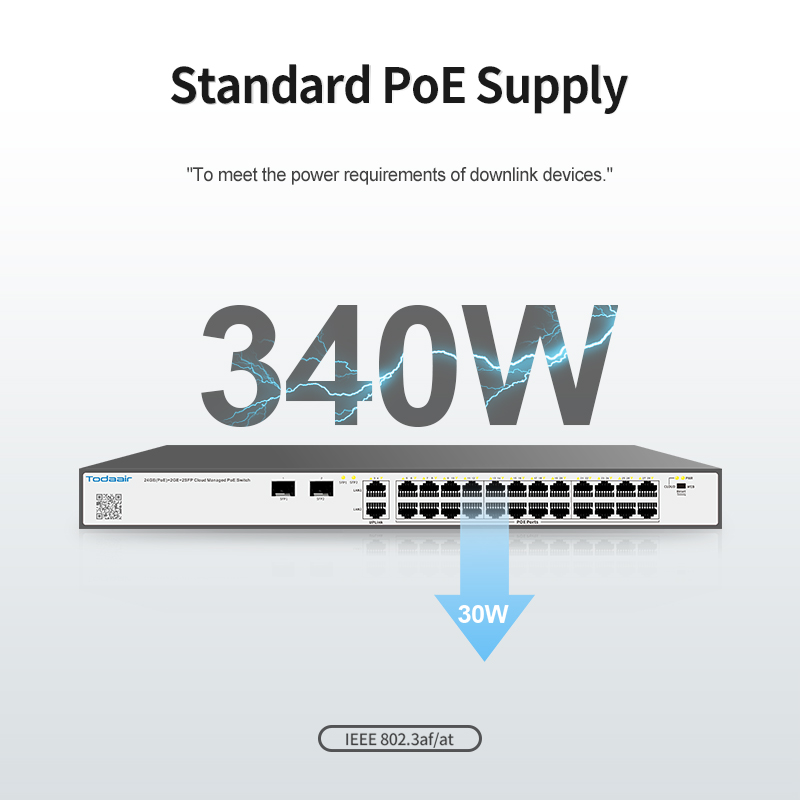

The switch provides 24×10/100/1000Mbps PoE RJ45 ports, supporting IEEE 802.3af/at standards for simultaneous data transmission and power supply. The high-density PoE port design allows installers to connect multiple IP cameras, wireless access points, and other powered devices using a single network cable.

l 24-Port Gigabit PoE Interface Design

The switch provides 24×10/100/1000Mbps PoE RJ45 ports, supporting IEEE 802.3af/at standards for simultaneous data transmission and power supply. The high-density PoE port design allows installers to connect multiple IP cameras, wireless access points, and other powered devices using a single network cable.

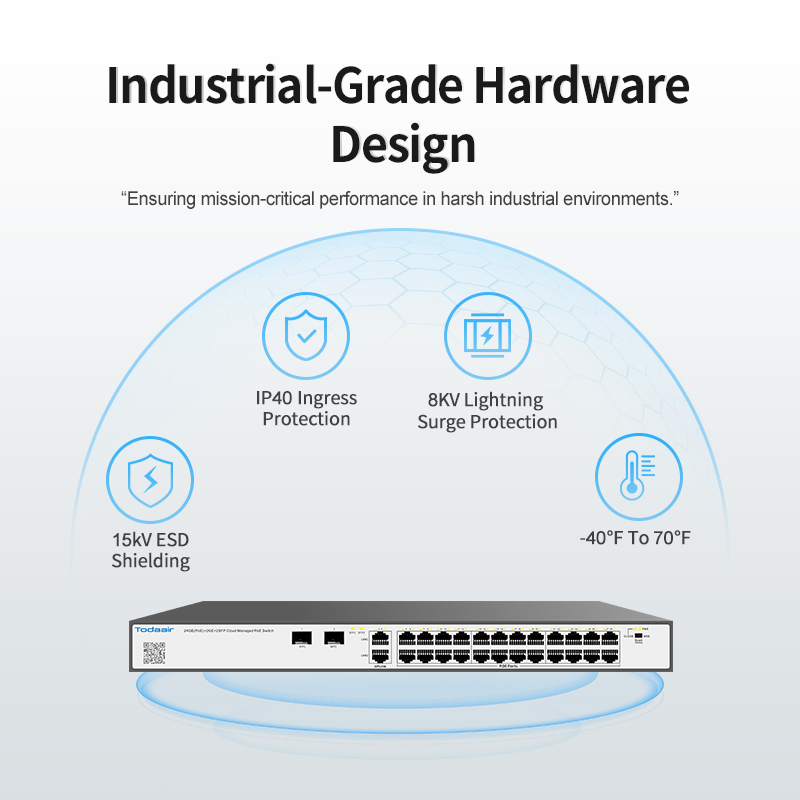

l Industrial-Grade Protection Design

Designed with a full metal chassis and aluminum alloy structure, TD-SW24G-2GFP provides enhanced heat dissipation and reliable operation in demanding environments. The switch supports IP40 protection, wide operating temperature range from -40°C to +75°C, 8kV surge protection, and 15kV ESD protection for improved durability.

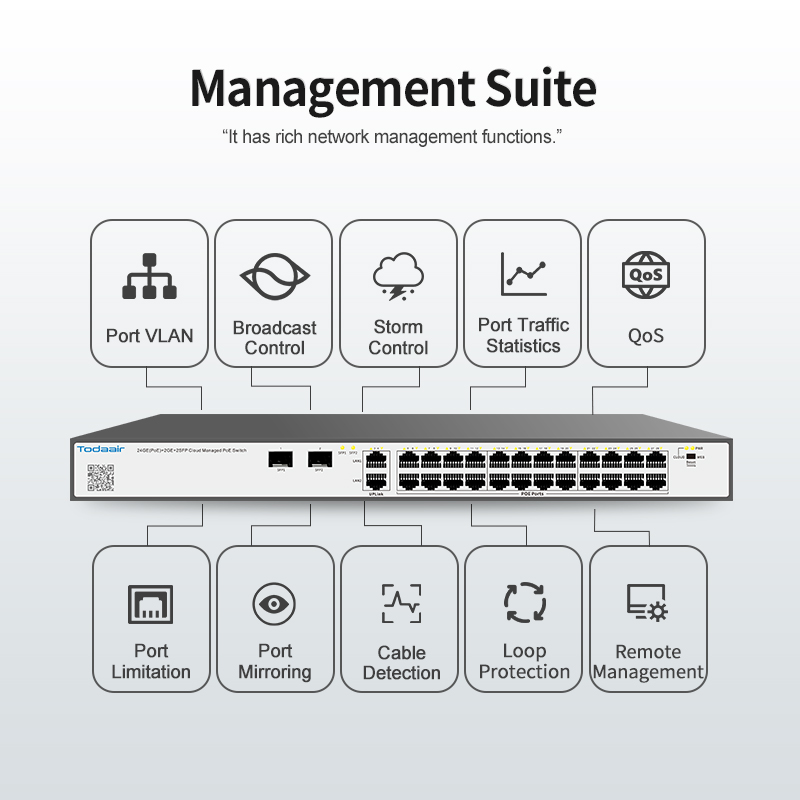

l Advanced Access layer Network Management

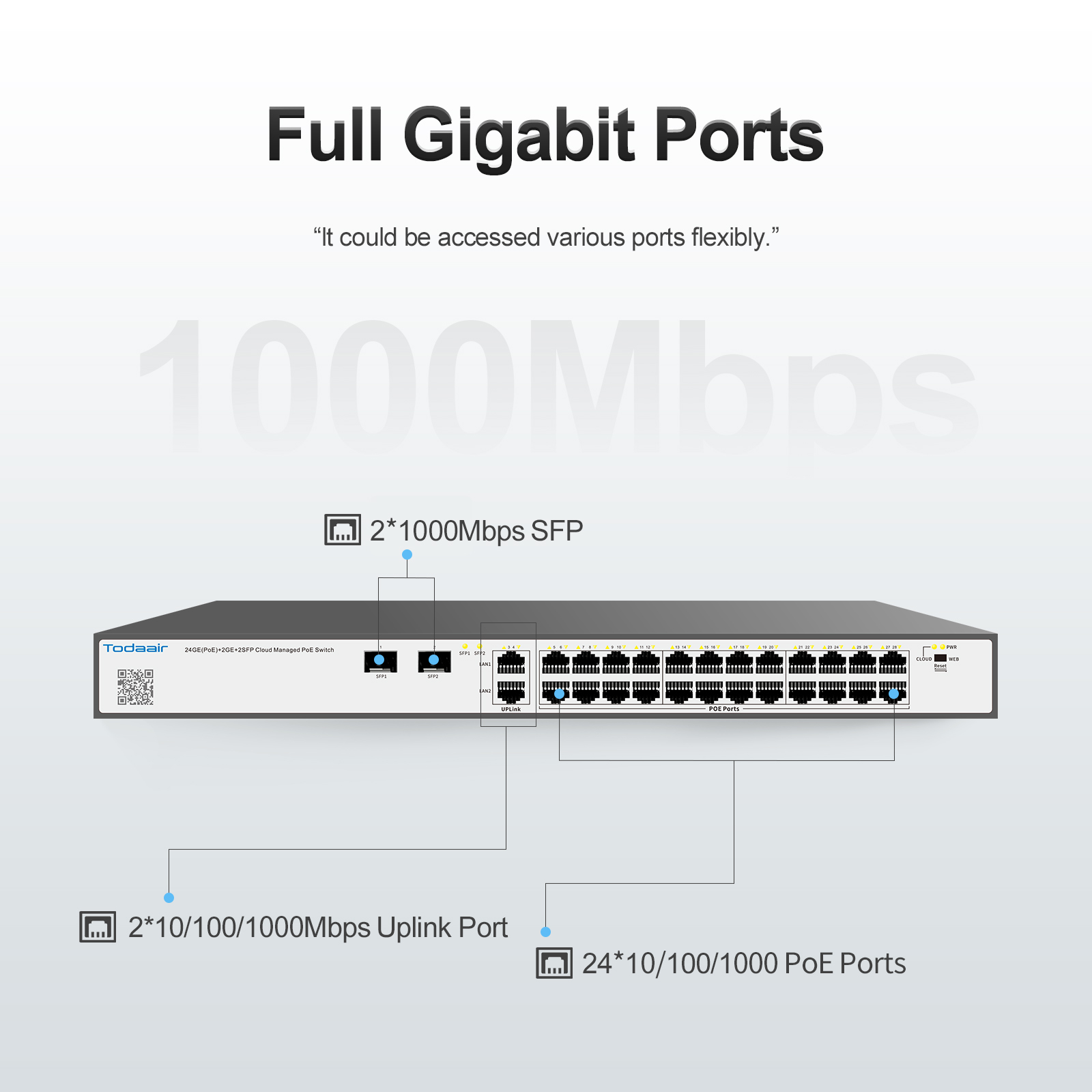

Equipped with 2×Gigabit RJ45 uplink ports and 1×Gigabit SFP port, TD-SW24G-2GFP supports IEEE 802.1Q VLAN, Port VLAN, QoS, bandwidth control, storm suppression, port mirroring, loop protection, and traffic statistics. These features help improve network efficiency, optimize bandwidth allocation, and enhance overall network security for growing business environments.

l Cloud Management Platform

Through Todaair APP and cloud platform, users can remotely access device information, monitor network status, configure settings, and perform maintenance tasks without being physically present at the installation site. This greatly improves efficiency for installers managing multiple projects.

Why Choose Todaair TD-SW24G-2GFP?

Reliable PoE Networking Solution

Todaair focuses on professional network products designed for security projects, wireless deployments, and enterprise applications.



Easy Project Management

Cloud and APP management simplify device maintenance and improve operational efficiency for installers.



Stable Performance for Long-Term Deployment

Industrial-grade design, intelligent power management, and protection functions ensure reliable operation.



Flexible Solutions for Different Projects

Multiple uplink options and advanced management features support various network architectures.



Professional Partner Support

Todaair provides product support, project solutions, and OEM/ODM cooperation for global partners.

Looking for a Reliable Gigabit PoE Switch Solution?

Contact Todaair for product information, project support, and cooperation opportunities.
