PRODUCT OVERVIEW
1. Integrated Wireless Bridge + PoE Switch Design
Combines wireless transmission and PoE switching functions in one device.
This integrated design reduces installation complexity, equipment quantity and project wiring costs.

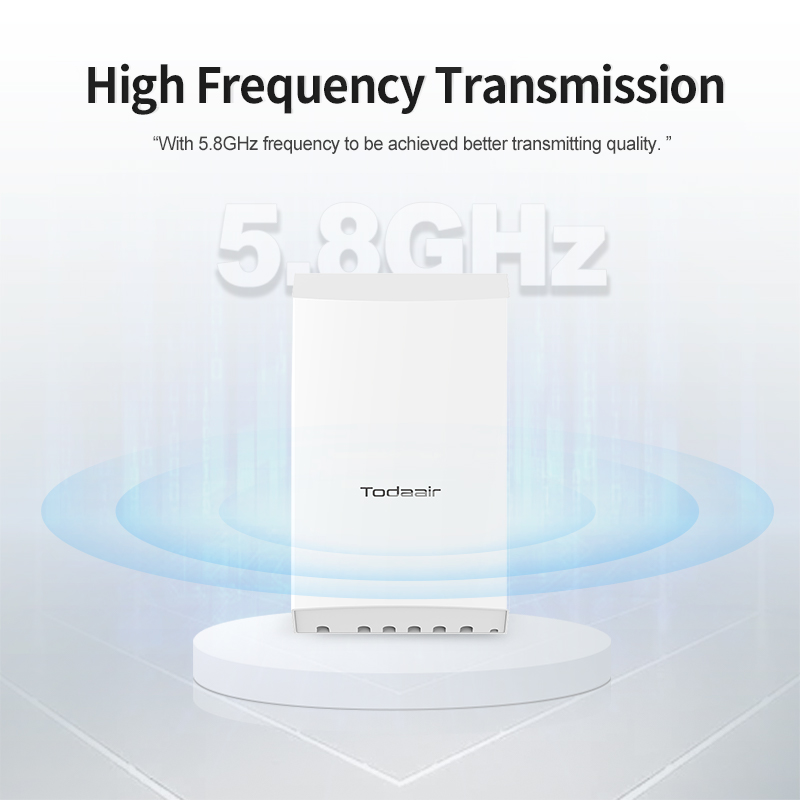

2. Long Range 5.8GHz Wireless Transmission up to 3km
Provides stable wireless connectivity for remote surveillance sites and large outdoor areas.Ideal for applications where fiber or Ethernet cabling is expensive or difficult.
3. Multiple Network Interfaces for Flexible Deployment
Equipped with multiple Ethernet ports and RS485 interface, enabling connection with IP cameras, sensors and industrial devices.
4. PoE Power Supply for Outdoor Surveillance
Supports PoE output to provide both power and data transmission through Ethernet cables.This simplifies camera installation and reduces additional power infrastructure requirements.
5. Built for Outdoor and Remote Applications

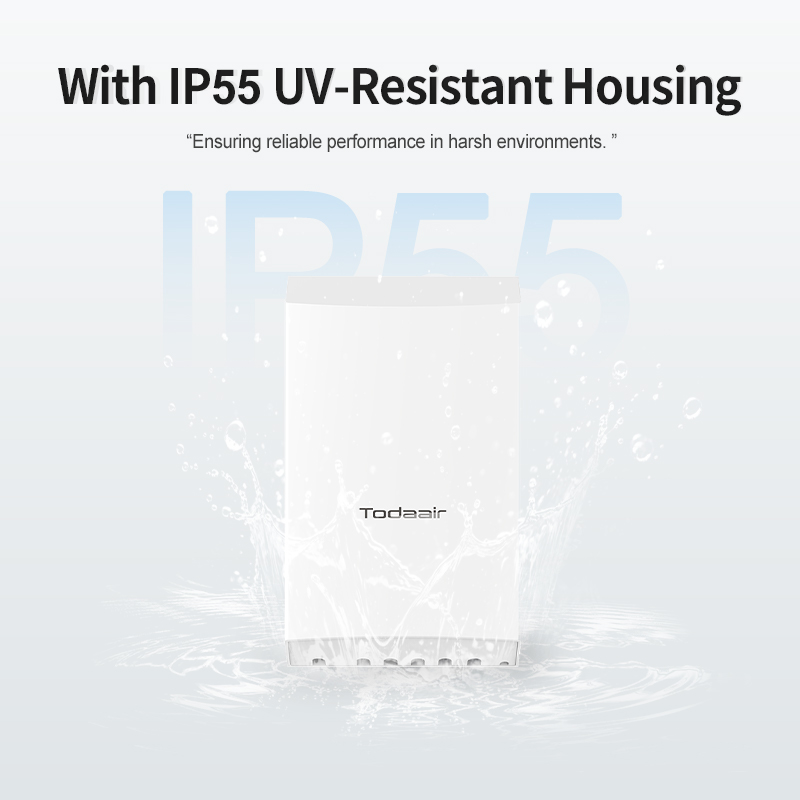

The IP55-rated enclosure provides protection against dust, rain and UV exposure.
Suitable for long-term deployment in farms, factories, construction sites and remote monitoring locations.
5.8GHz Wireless Transmission Solution with PoE Output and RS485 Interface for Remote Surveillance Projects

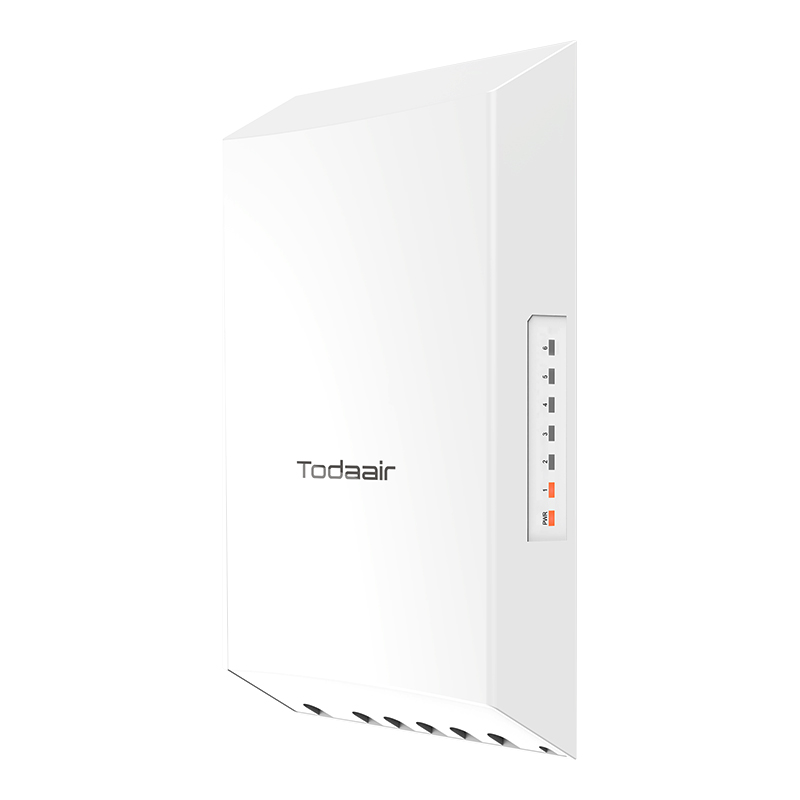

TD-56304T-RS is an integrated outdoor wireless networking solution combining a 5.8GHz wireless bridge, PoE switch and RS485 interface in one device.
Designed for remote surveillance and industrial applications, it simplifies project deployment by combining wireless transmission, camera power supply and data communication into a single outdoor unit.
Supporting wireless transmission up to 3km, the device provides stable connectivity for CCTV systems in farms, factories, construction sites, residential areas and other locations where wired networking is difficult.
With PoE output, flexible power input options and outdoor protection design, TD-56304T-RS helps system integrators build efficient and reliable remote monitoring solutions.
l Integrated Wireless Surveillance Networking Solution
TD-56304T-RS combines a wireless bridge and PoE switch into one outdoor device, providing a complete networking solution for remote surveillance projects.

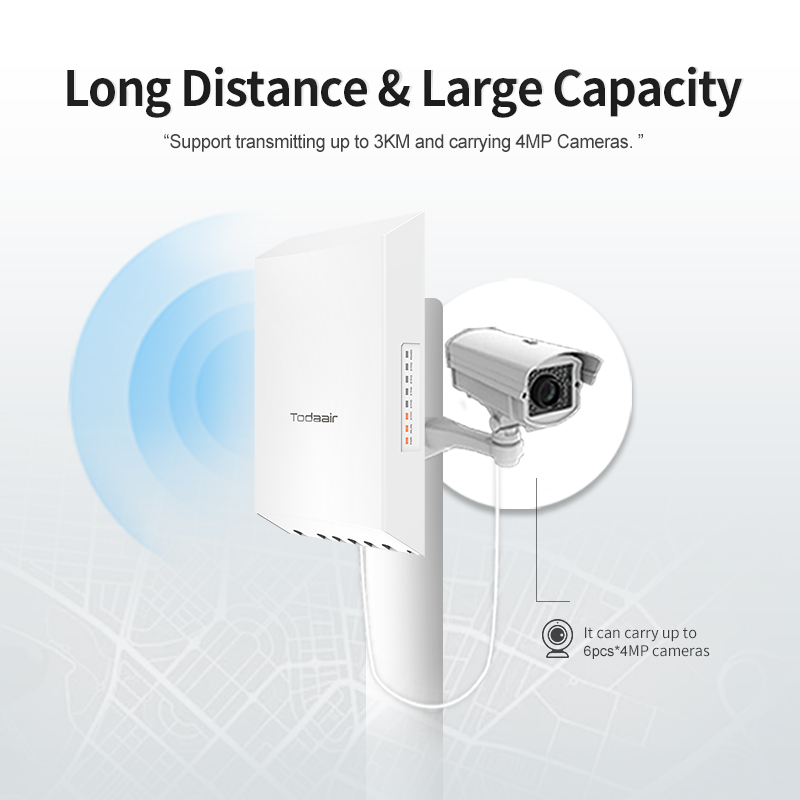

l Stable 3km Wireless Transmission
With 18dBi high-gain antennas and 27dBm transmission power, the system provides reliable 5.8GHz wireless connectivity up to 3km under line-of-sight conditions.
l Designed for Solar and Remote Surveillance Projects
The integrated design makes it suitable for solar-powered monitoring systems, farms, construction sites and other remote locations without traditional network infrastructure.

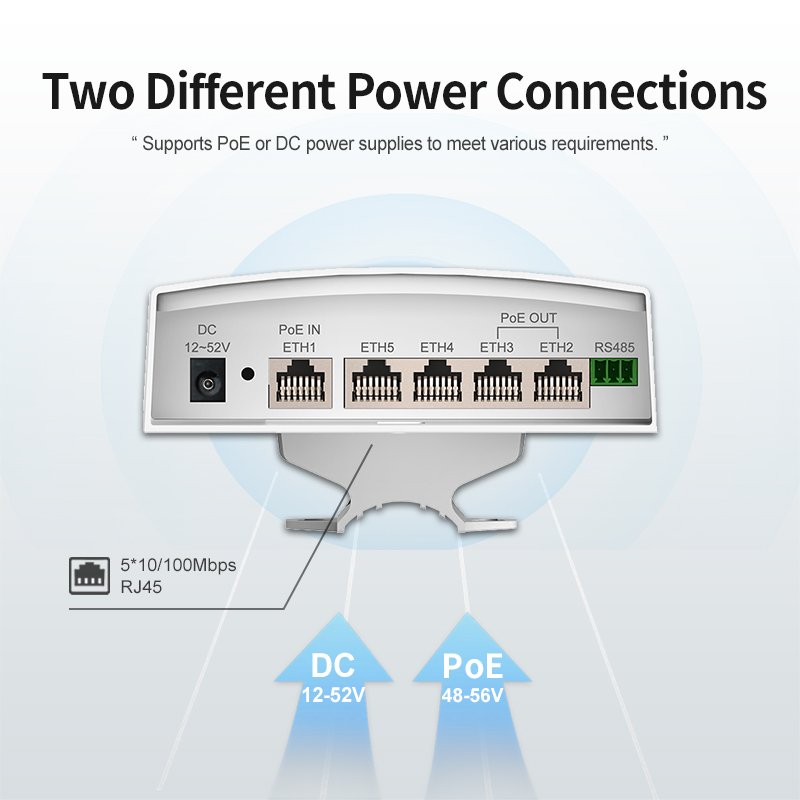

l Flexible Power and Data Interfaces
The device supports DC 12-52V input, PoE input and PoE output, together with Ethernet ports and RS485 interface.
This provides flexible integration options for different project requirements.
lRemote Management Capability
Compatible with Todaair Cloud Platform, allowing centralized monitoring of device status and connected solar system parameters including battery level and charging information.
Recommended Applications
- Solar-powered CCTV systems
- Farms and agricultural monitoring

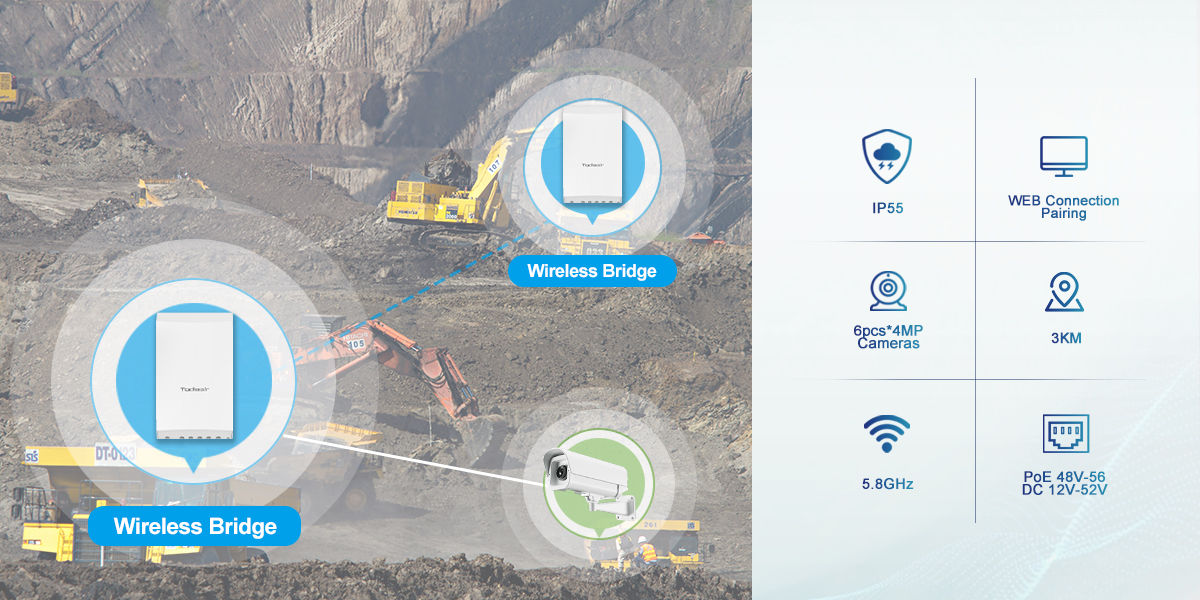

- Construction site surveillance
- Remote industrial monitoring
- Smart security projects
- Outdoor IoT applications
Build Your Remote Surveillance Network with Todaair.
From solar monitoring systems to industrial wireless networks, Todaair provides integrated wireless bridge solutions for professional installers and project partners.
Contact our sales team:[email protected]

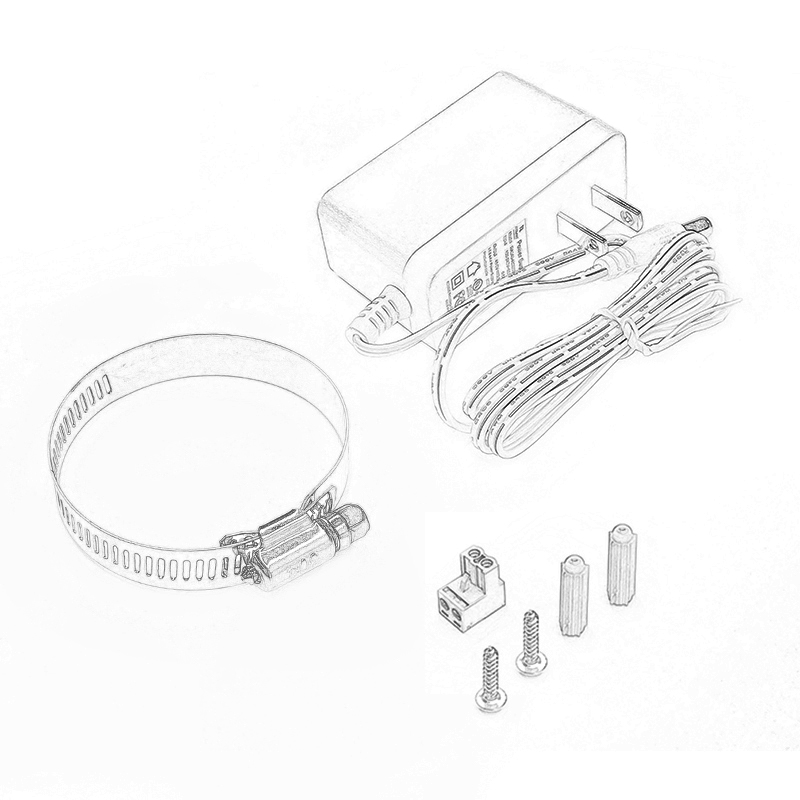

| Pole-Mount | |
 |
 |
|
1 Thread the metal strap through the slot on the device. |
2 Wrap the metal strap around the pole, then use a screwdriver to tighten the screw clockwise. |
| Wall-Mount | |
 |
 |
|
1 First align the hoist holes on the back of the device and screw into the wall, maintaining 3-5mm spacing between each screw. |
2 Insert the screws through the mounting holes on the back of the device and fasten the device to the wall. |
