PRODUCT OVERVIEW
- Delivering up to 100W of peak power
- Powered by a 50Ah high-capacity LFP battery
- Supports up to 1,200 charge-discharge cycles while maintaining over 80% of its charging capacity after three years of use
- Temperature range of -5℃ to 65℃

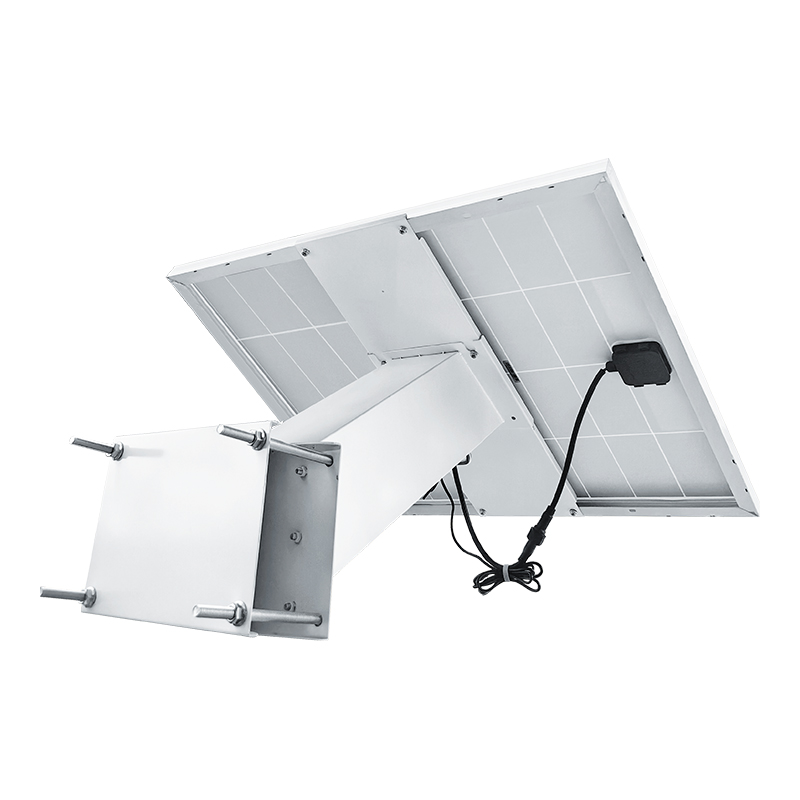

l This high-performance monocrystalline silicon solar panel utilizes premium-grade photovoltaic cells and high-strength tempered glass, delivering up to 100W of peak power and achieving an exceptional photoelectric conversion efficiency of up to 19.3%. Its reinforced aluminum alloy frame provides superior protection and long-lasting durability.
l Powered by a 50Ah high-capacity LFP (Lithium Iron Phosphate) battery, the system supports up to 1,200 charge-discharge cycles while maintaining over 80% of its charging capacity after three years of use. Featuring efficient energy storage and discharge capabilities, it ensures robust power delivery and extended operational endurance.
l It is equipped with multiple protection features, including overcharging protection, PV/BAT reverse connection protection, output overcurrent protection, nighttime discharge prevention from BAT to PV, and BAT undervoltage protection. The system adopts a three-stage charging strategy: constant-current, constant-voltage, and float charging. Intelligent charge-discharge management with temperature compensation significantly extends battery service life by over 50%.
l Featuring a fully galvanized steel casing coated with outdoor-grade paint, the system demonstrates exceptional corrosion resistance and weatherproof performance. Capable of stable operation within a temperature range of -5℃ to 65℃, its rainproof and dustproof construction ensures reliable functionality in harsh outdoor environments.

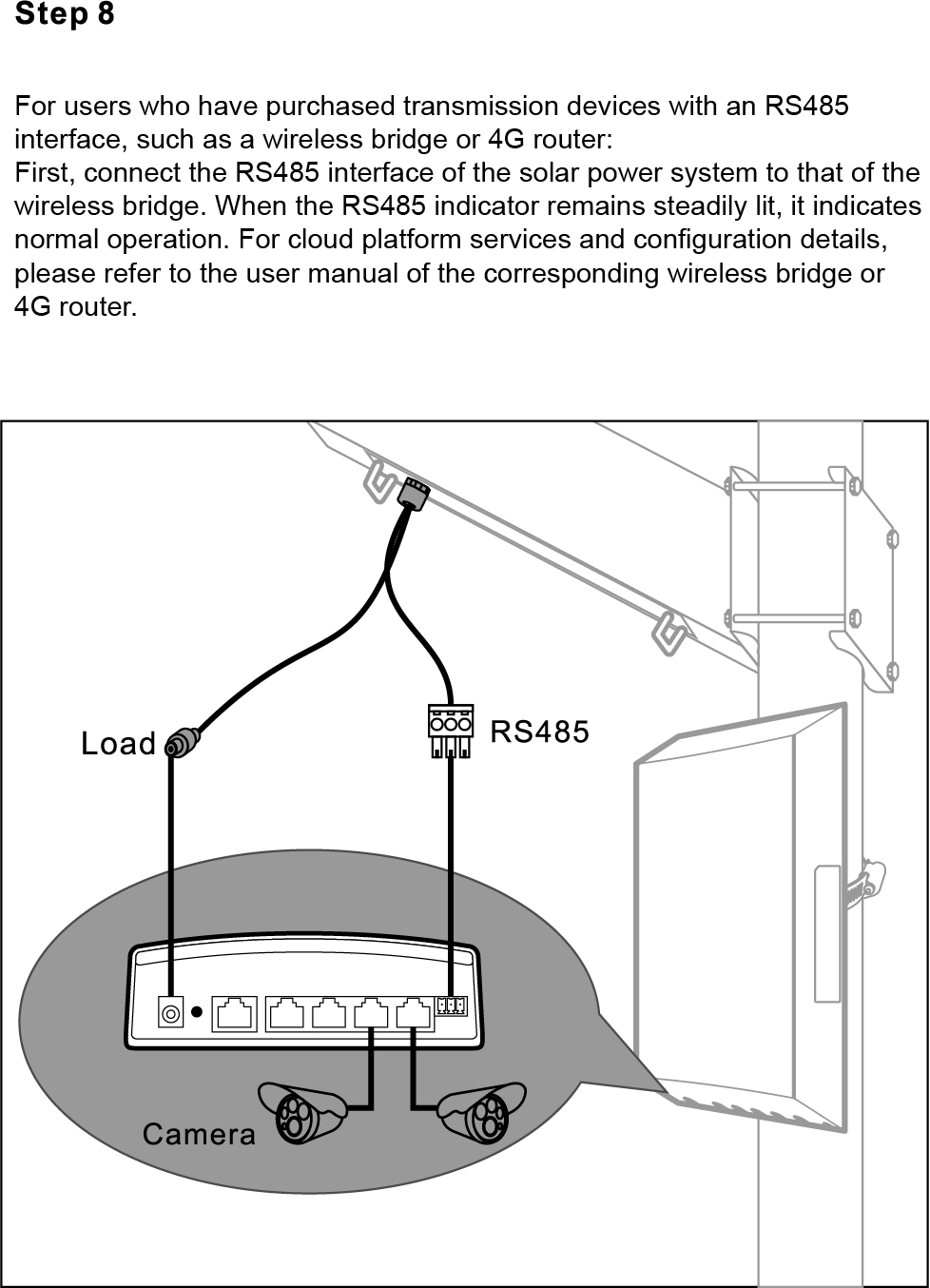

l Intelligent Todaair cloud-based management: by utilizing the TD-56304-RS (a wireless bridge and PoE switch in one), the system collects data and uploads it to the cloud for centralized management.
