PRODUCT OVERVIEW
- 2.4GHz/5GHz dual-band operation
- With omni-directional 85m coverage ranges/65 users connection
- 1* 10/100Mbps LAN port
- Support repeater & AP modes
- IP65 level protection
l Engineered for extended Wi-Fi coverage, this device offers an omnidirectional range of up to 85 meters. Equipped with 4* 5dBi high-gain antennas and 23dBm transmit power, it delivers robust signal stability and exceptional reception sensitivity, ensuring reliable Wi-Fi connectivity for outdoor smart devices.
l Dual-band 2.4GHz/5.8GHz transmission offers strong anti-interference performance, enhanced wall penetration, and high-bandwidth capability. It supports maximum speeds of 300Mbps on 2.4GHz and 867Mbps on 5.8GHz, ensuring optimized data throughput.
l Built with an IP65-rated, UV-resistant housing that is both waterproof and dustproof. Designed to operate reliably in extreme temperatures ranging from -30°C to 65°C, it withstands harsh weather conditions such as storms, snow, and intense heat, ensuring uninterrupted performance in demanding environments.

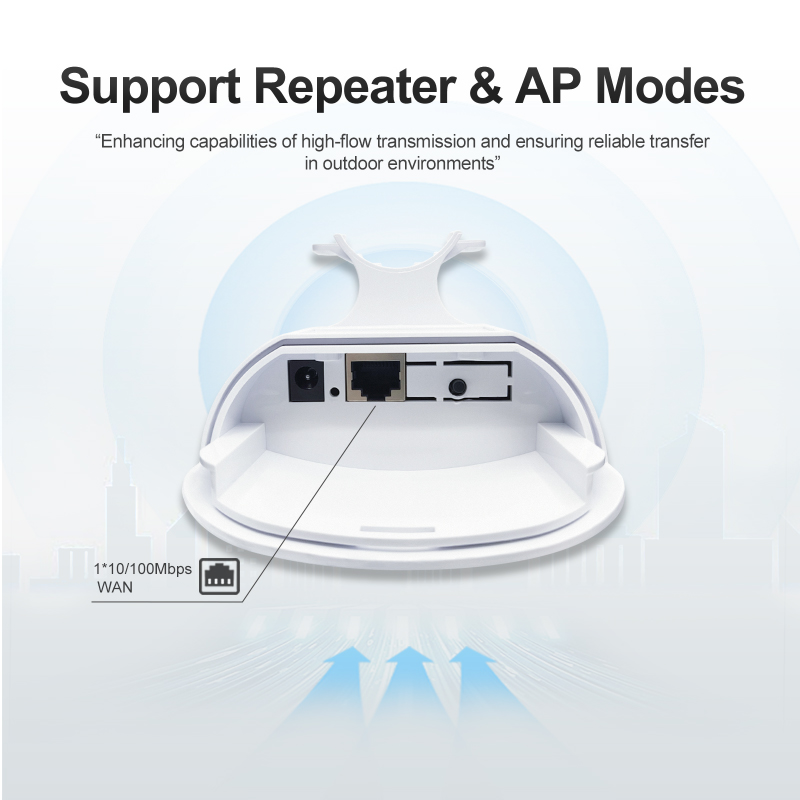

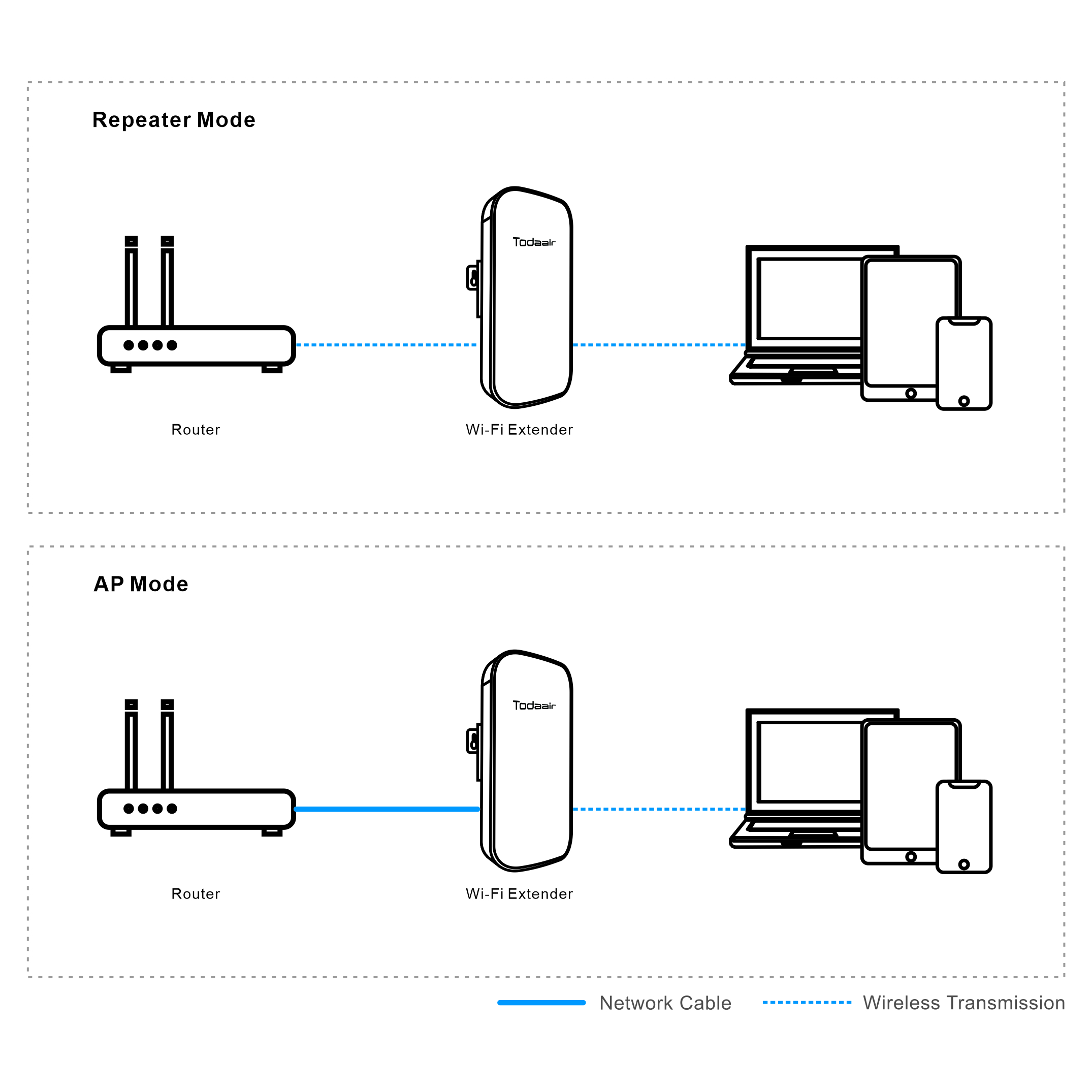

l Equipped with 1* 10/100Mbps LAN port for efficient data transmission. It supports both “Repeater Mode” and “Access Point (AP) Mode,” offering flexible deployment options for various outdoor coverage scenarios.
l Supports up to 65 concurrent connections with seamless mode switching, making it ideal for high-density outdoor wireless deployments. Fully compatible with mainstream wireless devices, ensuring smooth integration into smart ecosystems.

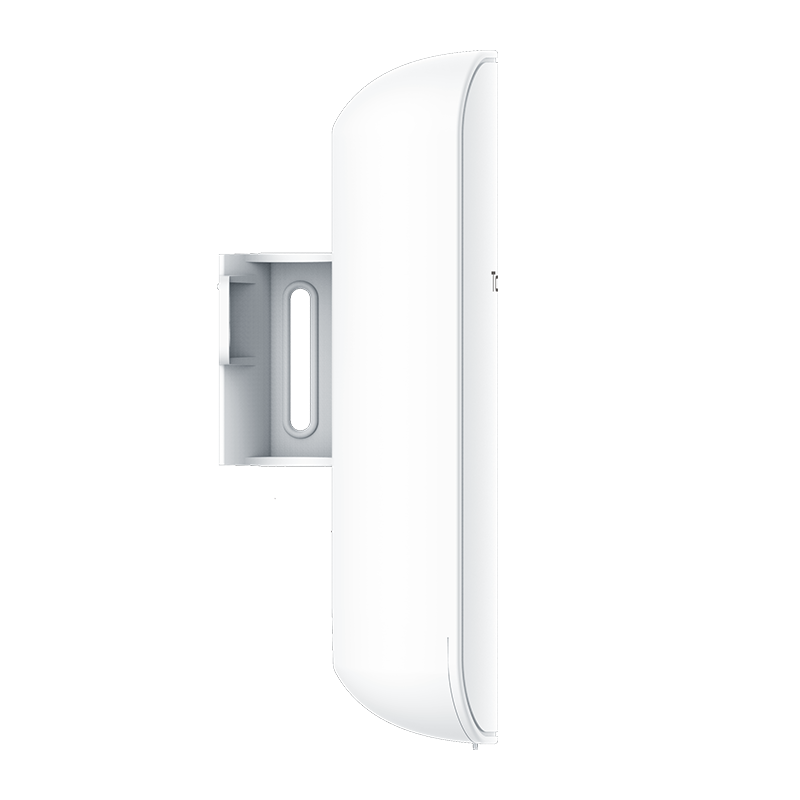

| Pole-Mount | |
 |
 |
|
1 Thread the metal strap through the slot on the device. |
2 Wrap the metal strap around the pole, then use a screwdriver to tighten the screw clockwise. |
| Wall-Mount | |
 |
 |
|

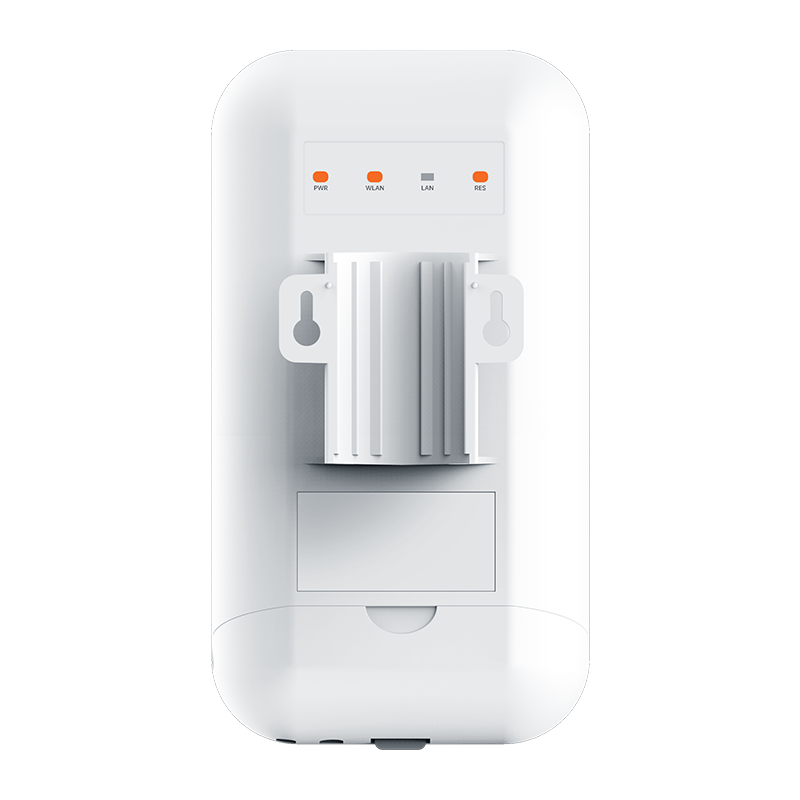

1 First align the hoist holes on the back of the device and screw into the wall, maintaining 3-5mm spacing between each screw. |
2 Insert the screws through the mounting holes on the back of the device and fasten the device to the wall. |
