PRODUCT OVERVIEW
- 2.4GHz/5GHz dual-band operation
- With omni-directional 85m coverage ranges/65 users connection
- 1* 10/100Mbps LAN port
- Support repeater & AP modes
- IP65 level protection

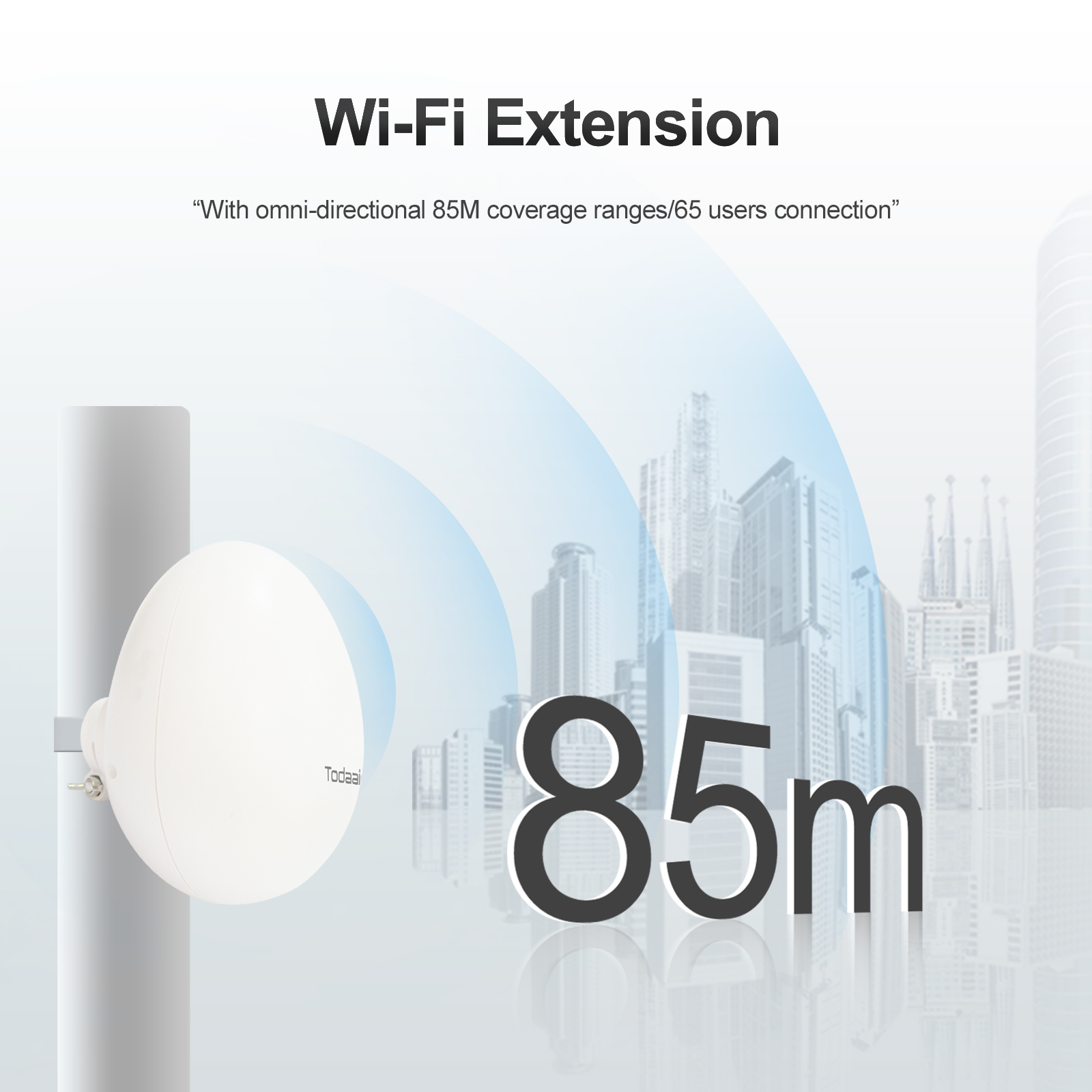

l Engineered for extended Wi-Fi coverage, this device offers an omnidirectional range of up to 85 meters. Equipped with 4* 5dBi high-gain antennas and 23dBm transmit power, it delivers robust signal stability and exceptional reception sensitivity, ensuring reliable Wi-Fi connectivity for outdoor smart devices.
l Dual-band 2.4GHz/5.8GHz transmission offers strong anti-interference performance, enhanced wall penetration, and high-bandwidth capability. It supports maximum speeds of 300Mbps on 2.4GHz and 867Mbps on 5.8GHz, ensuring optimized data throughput.
l Built with an IP65-rated, UV-resistant housing that is both waterproof and dustproof. Designed to operate reliably in extreme temperatures ranging from -30°C to 65°C, it withstands harsh weather conditions such as storms, snow, and intense heat, ensuring uninterrupted performance in demanding environments.

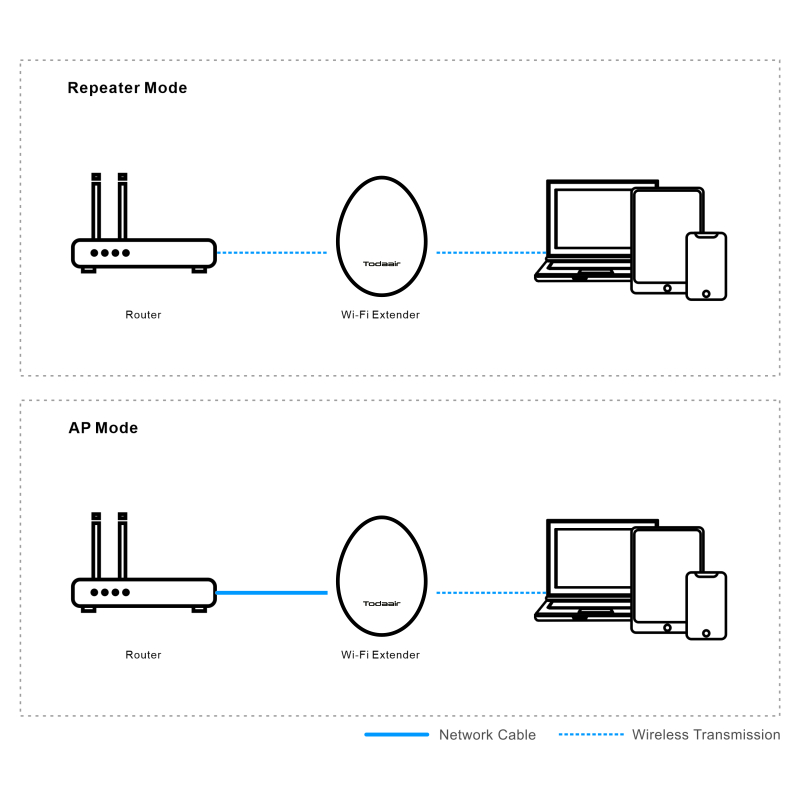

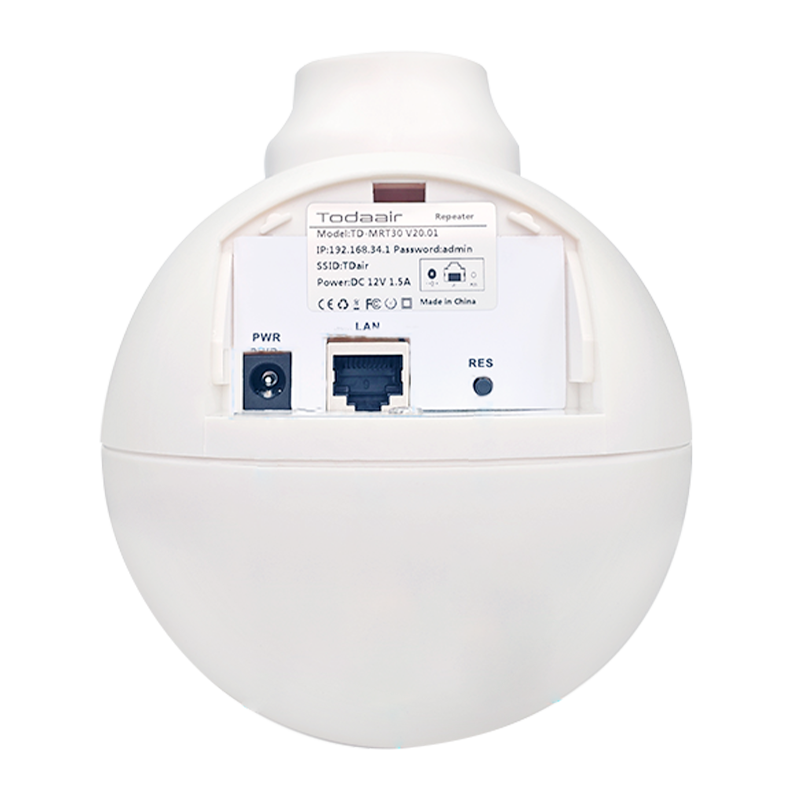

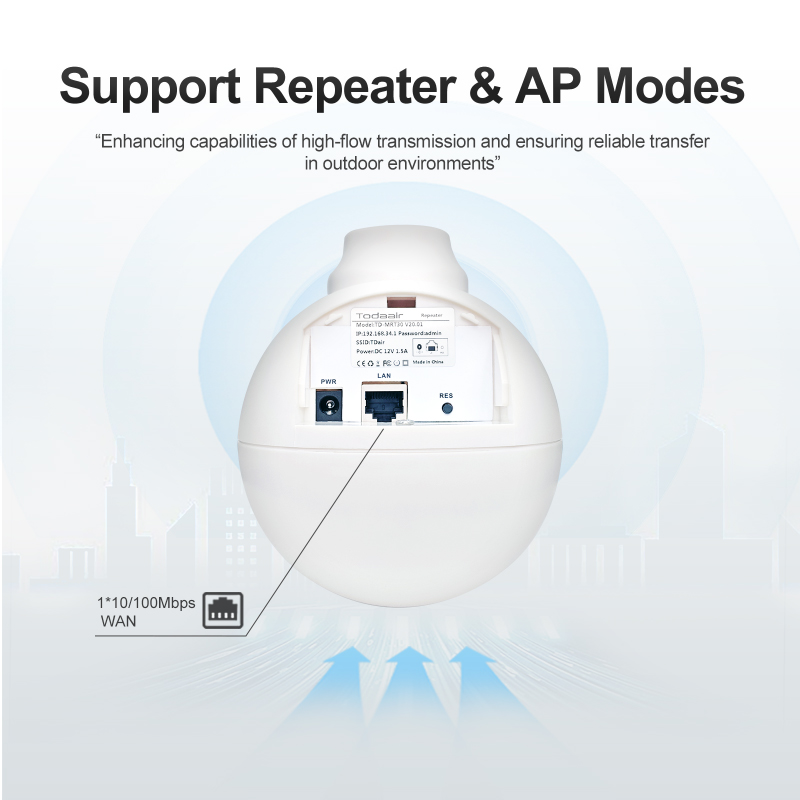

l Equipped with 1* 10/100Mbps LAN port for efficient data transmission. It supports both “Repeater Mode” and “Access Point (AP) Mode,” offering flexible deployment options for various outdoor coverage scenarios.
l Supports up to 65 concurrent connections with seamless mode switching, making it ideal for high-density outdoor wireless deployments. Fully compatible with mainstream wireless devices, ensuring smooth integration into smart ecosystems.
l A streamlined three-step setup process enables quick and effortless installation—no advanced technical expertise required.
| Pole-Mount | |
 |
 |
|
1 Route the strap through the lower slot of the universal joint bracket, then secure it by bucking. |
2 Wrap the strap around the pole, then use a screwdriver to tighten the mounting screw. |
 |
 |
|
3 Align the device’s mounting interface with the universal joint bracket. Insert the bracket assembly into the lock ring, ensuring the device back contacts the ring surface. |
4 Securely tighten the fixing screw, while maintaining 0.5-1mm axial play in the lock ring for pivot adjustment. |
| Wall-Mount | |
 |
 |
| 1 Secure the wall mount plate using the anchor bolts. Attach the universal joint bracket to the plate with the screws. |
2 Securely fasten the wall mount plate to a load-bearing wall using appropriate anchors. |
 |
 |
|
3 Attach the device to the universal joint bracket. Inset the bracket into the lock ring with the device’s back surface facing outward. |
4 Securely fasten the positioning screw while maintaining 0.5-1mm axial clearance on the lock ring to enable device pivoting.
|
