Wi-Fi Access Points

INAX50Y-H V3.0

Wireless Access Point

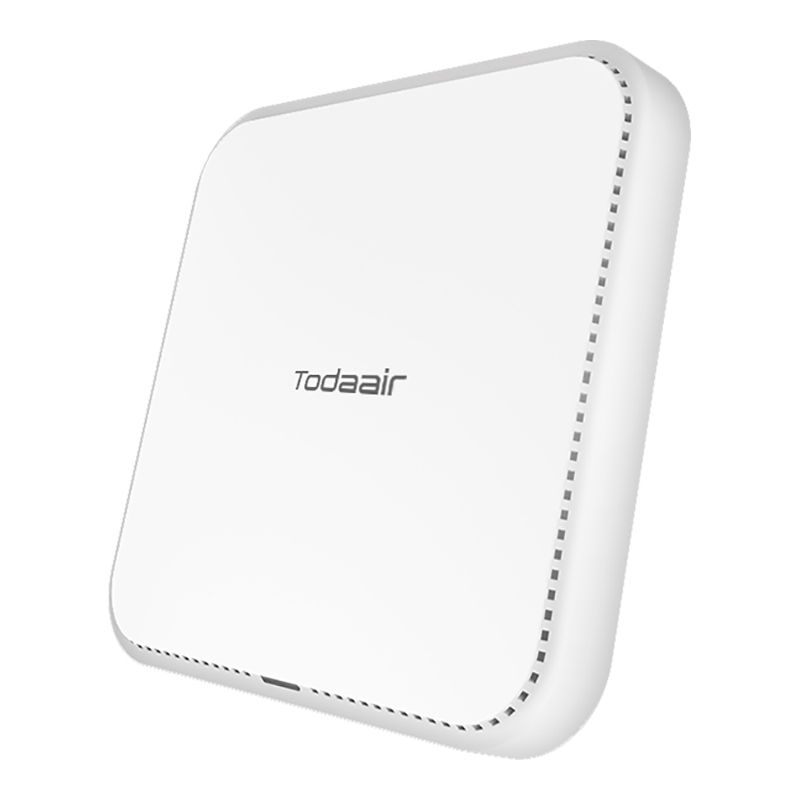

Todaair's dual-band (2.4/5GHz) ceiling-mounted AP delivers 3000Mbps aggregate throughput, covering areas up to 500m². It is designed for seamless deployment in residential, commercial, and high-density environments, including retail complexes, hospitality venues, and healthcare facilities.

Download DocumentsRequest Quote
INAX50Y-H V3.0

PRODUCT OVERVIEW

Todaair's dual-band (2.4/5GHz) ceiling-mounted AP delivers 3000Mbps aggregate throughput, covering areas up to 500m². It is designed for seamless deployment in residential, commercial, and high-density environments, including retail complexes, hospitality venues, and healthcare facilities.
  • 2.4GHz/5GHz dual-band operation
  • With IEEE 802.11b/g/n/ac/ax standards
  • Up to 3000Mbps rates and supporting dense connectivity for up to 180 users across 500㎡
  • Supports 48V PoE or 12V DC input
  • 1*10/100/1000Mbps auto-negotiating WAN ports

l Compliant with IEEE 802.11b/g/n/ac/ax standards, it supports MU-MIMO and OFDMA technologies. It has achieved groundbreaking advancements in four key technical areas: transmission rate, network capacity, coverage range, and interference resistance, delivering an unparalleled wireless connectivity experience to end users.



l Featuring dual-band data rates up to 3000 Mbps with 25 dBm transmit power, and 160MHz high-frequency bandwidth. This device integrates four high-gain omnidirectional antennas, supporting dense connectivity for up to 180 users with coverage up to 500 square meters. This design effectively addresses the high-bandwidth, high-capacity networking demands of enterprise, educational, hospitality, and residential environments.



l Engineered with concurrent 2.4GHz/5GHz dual-band operation, it combines interference resistance, superior wall penetration, and high throughput. The 2.4GHz band delivers peak rates of 574Mbps, while the 5GHz band achieves 2402Mbps.



l The system supports 802.11k/v/r intelligent roaming for seamless handoffs between APs. RF optimization algorithms within the multi-AP coordination mechanism reduce inter-AP interference and ensure continuous connectivity via automatic AP reassignment — with no manual input required.

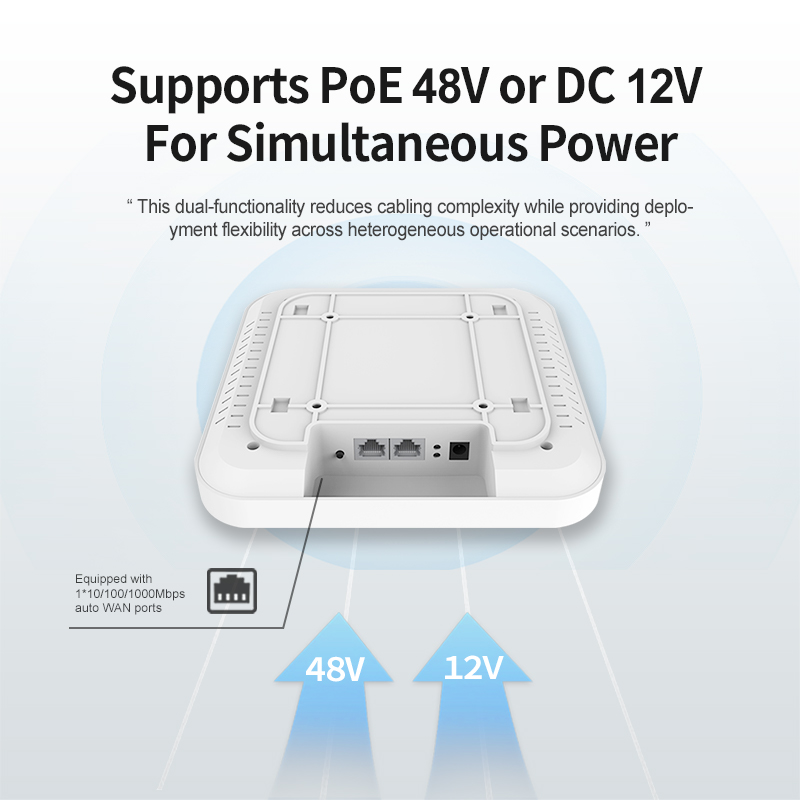

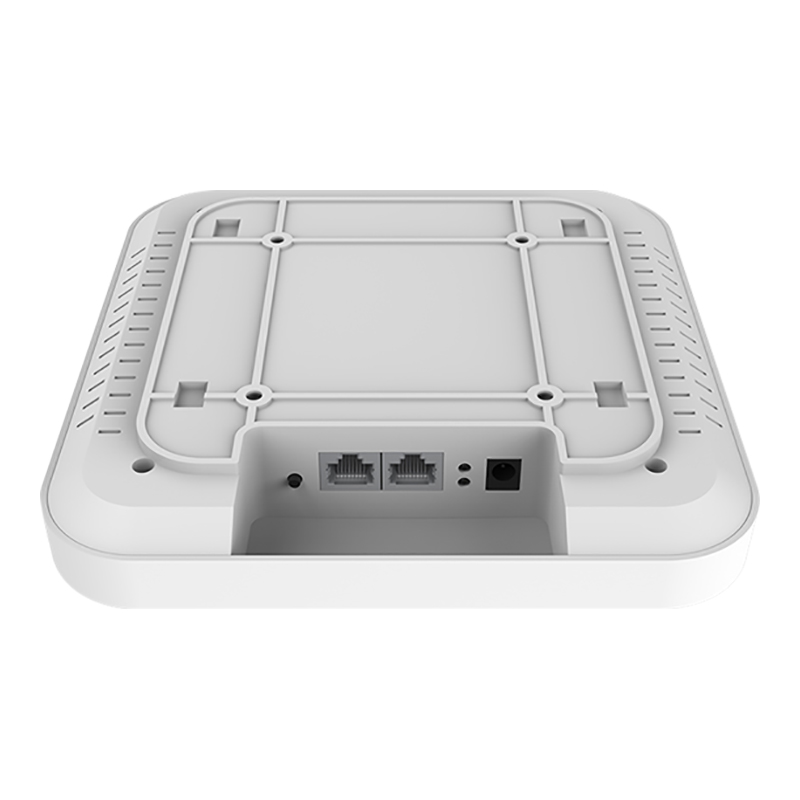

l Equipped with 1*10/100/1000Mbps auto-negotiating WAN port for high-throughput data transmission, the device supports 48V PoE or 12V DC input, enabling power and data transmission over a single cable. This dual-functionality reduces cabling complexity and enhances deployment flexibility across diverse application scenarios.



l The platform, compatible with the Todaair APP, enables centralized network administration with real-time monitoring of topology, device status, and performance analysis. Its built-in one-click optimization engine ensures fast configuration adjustments, supporting agile and mission-critical network operations.
