PRODUCT OVERVIEW
- 2.4GHz/5GHz dual-band operation
- With IEEE 802.11b/g/n/ac/ax standards
- Up to 1800Mbps rates and supporting dense connectivity for up to 120 users across 100m
- Supports PoE 48V for power
- 2*10/100/1000Mbps auto-negotiating WAN ports
- With IP44 UV-resistant housing
l Compliant with IEEE 802.11b/g/n/ac/ax standards, it supports MU-MIMO and OFDMA technologies. It has achieved groundbreaking advancements in four key technical areas: transmission rate, network capacity, coverage range, and interference resistance, delivering an unparalleled wireless connectivity experience to end users.
l Featuring dual-band data rates up to 1800 Mbps with 23 dBm transmit power, and 160MHz high-frequency bandwidth. This device integrates four high-gain directional antennas, supporting dense connectivity for up to 120 users with coverage up to 100 meters. This design effectively addresses the high-bandwidth, high-capacity networking demands of enterprise, educational, hospitality, and residential environments.
l Engineered with concurrent 2.4GHz/5GHz dual-band operation, it combines interference resistance, superior wall penetration, and high throughput. The 2.4GHz band delivers peak rates of 600Mbps, while the 5GHz band achieves 1200Mbps.

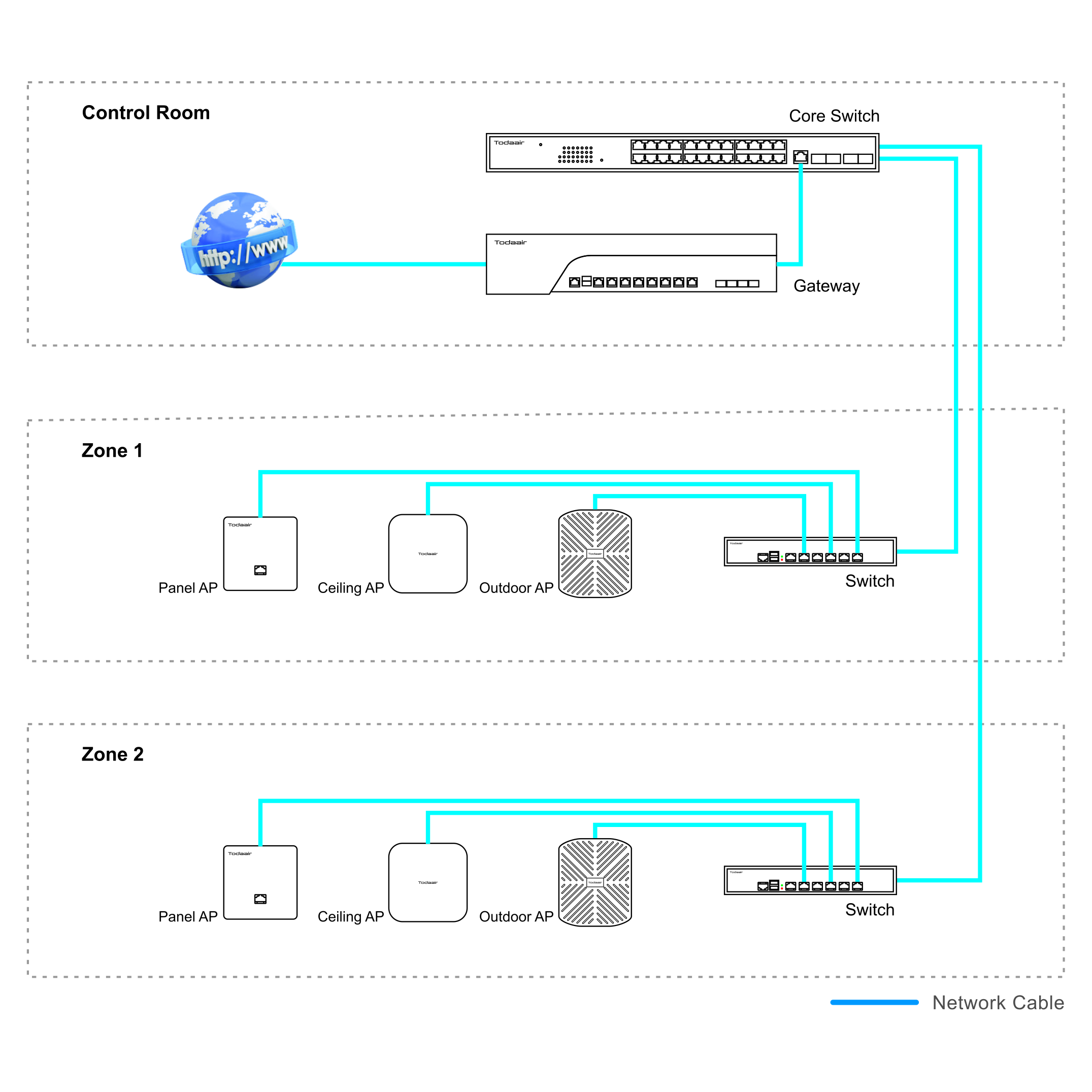

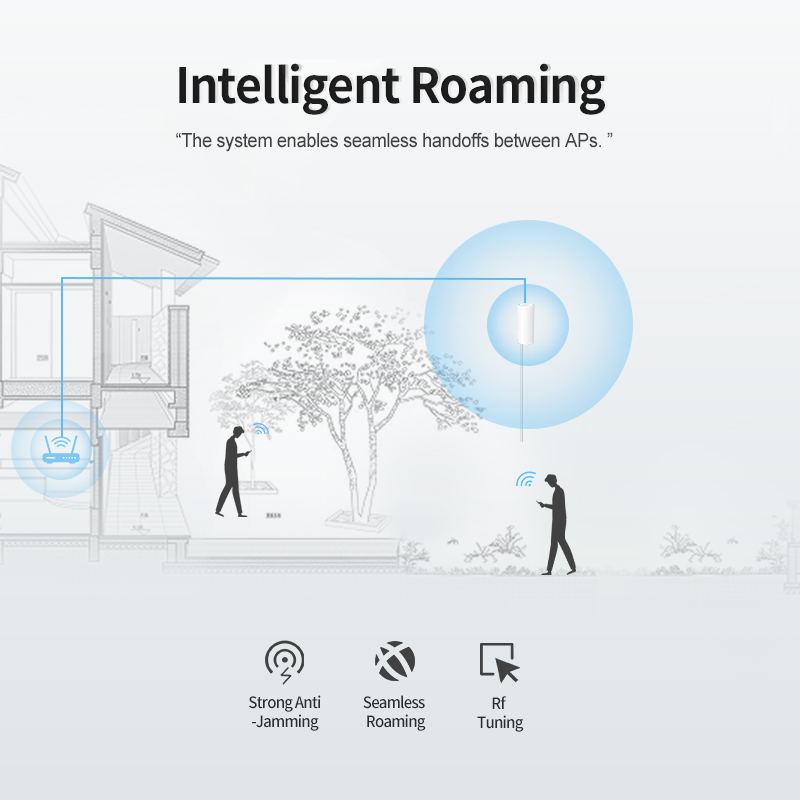

l The system supports 802.11k/v/r intelligent roaming for seamless handoffs between APs. RF optimization algorithms within the multi-AP coordination mechanism reduce inter-AP interference and ensure continuous connectivity via automatic AP reassignment — with no manual input required.

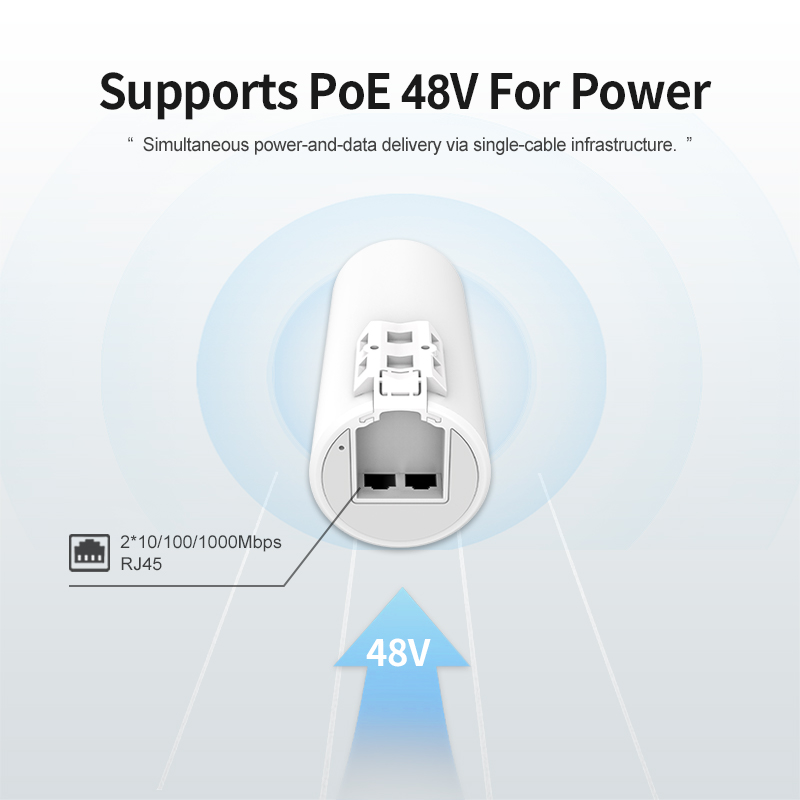

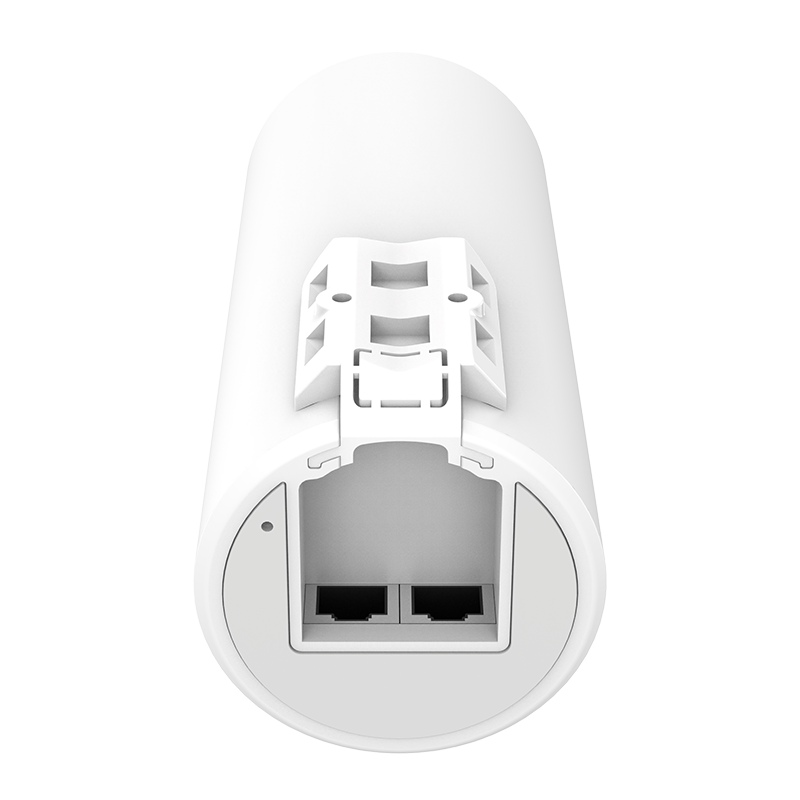

l Equipped with 2*10/100/1000Mbps auto-negotiating WAN ports for high-throughput data transmission, the device supports 48V PoE input, enabling power and data transmission over a single cable. This dual-functionality reduces cabling complexity and enhances deployment flexibility across diverse application scenarios.

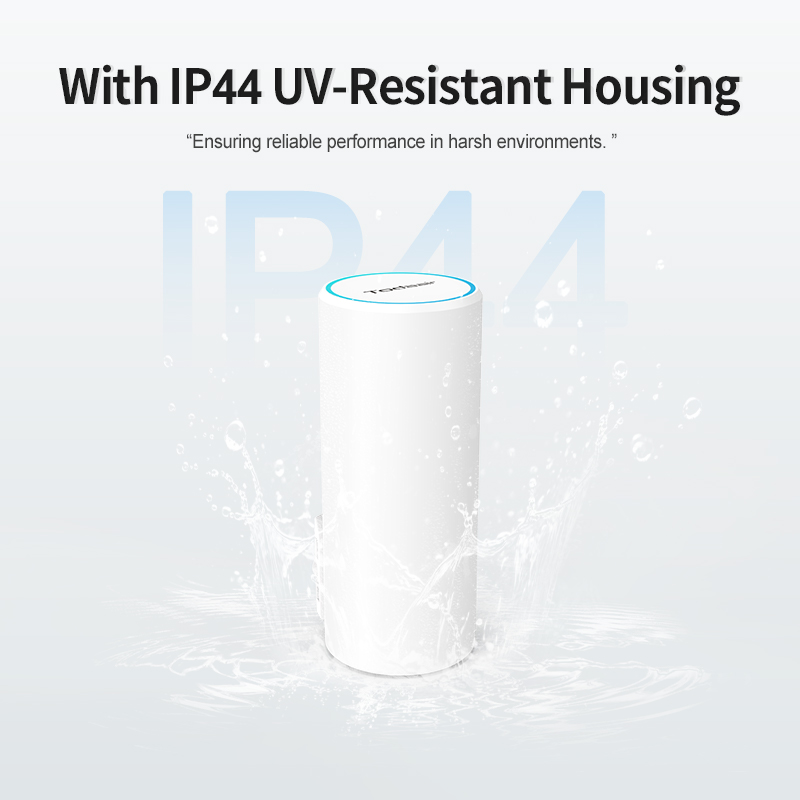

l Featuring an IP44-rated, UV-resistant housing, the device operates reliably in temperatures ranging from -20℉ to 149℉. It is designed to withstand extreme weather conditions—including rain, snow, heat, and lightning—ensuring stable performance in harsh outdoor environments.
l The platform, compatible with the Todaair APP, enables centralized network administration with real-time monitoring of topology, device status, and performance analysis. Its built-in one-click optimization engine ensures fast configuration adjustments, supporting agile and mission-critical network operations.
