PRODUCT OVERVIEW
1. One-Click Automatic Pairing for Easy Installation
- Faster deployment
- Less technical setup required
- Improved installation efficiency
2. Reliable 2.4GHz Wireless Transmission
- Cost-effective wireless replacement
- Stable video monitoring
- Suitable for compact projects
3. Optimized for Elevator and Short-Distance Surveillance
- Solves difficult cable installation problems
- Reduces construction complexity
- Suitable for retrofit projects
4. Rugged IP65 Protection for Reliable Operation
- Long-term outdoor reliability
- Reduced maintenance needs
- Flexible installation locations
5. Flexible Power Supply and Easy Deployment
- Easier project integration
- Reduced installation complexity
- Flexible deployment options
TD1220 2.4GHz Wireless Bridge for Elevator Monitoring and CCTV Applications
The TD1220 is a compact 2.4GHz wireless bridge designed for short-distance IP camera transmission and elevator monitoring applications.
With automatic one-click pairing, simple installation, and IP65 outdoor protection, it provides an easy-to-deploy wireless networking solution where traditional cabling is inconvenient or difficult.
Supporting up to 150Mbps wireless throughput, PoE power supply, and reliable wireless connectivity, the TD1220 is suitable for elevators, small surveillance systems, and commercial monitoring projects.

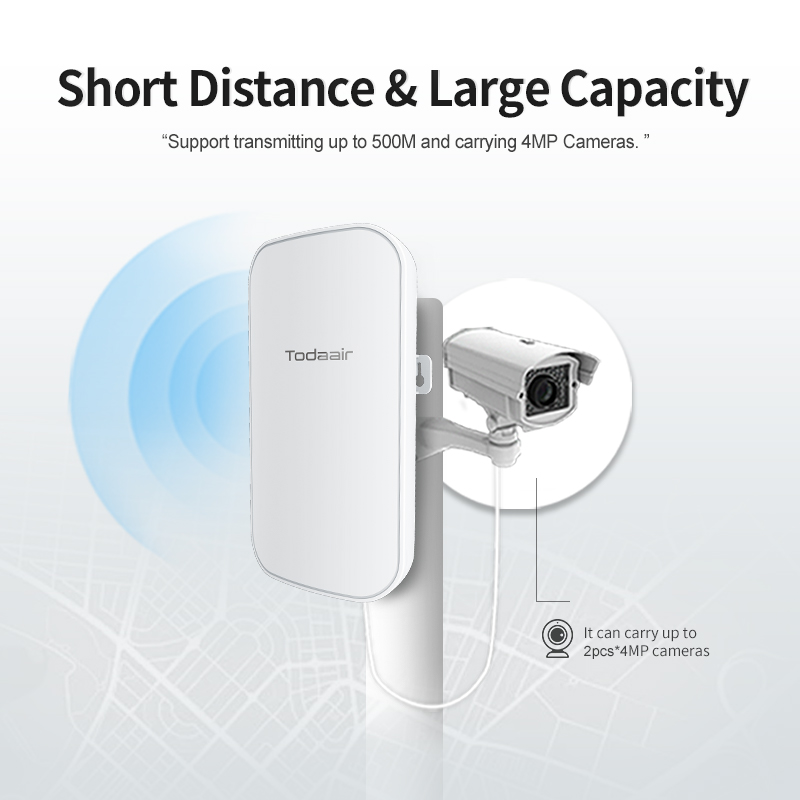

lReliable 500m Wireless Surveillance Transmission
Designed for 500m surveillance transmission, the system delivers up to 150Mbps wireless throughput with an 8dBi high-gain antenna and 20dBm transmission power.
It provides reliable wireless connectivity and excellent receiving sensitivity for HD video streaming, supporting up to two 4MP IP cameras.

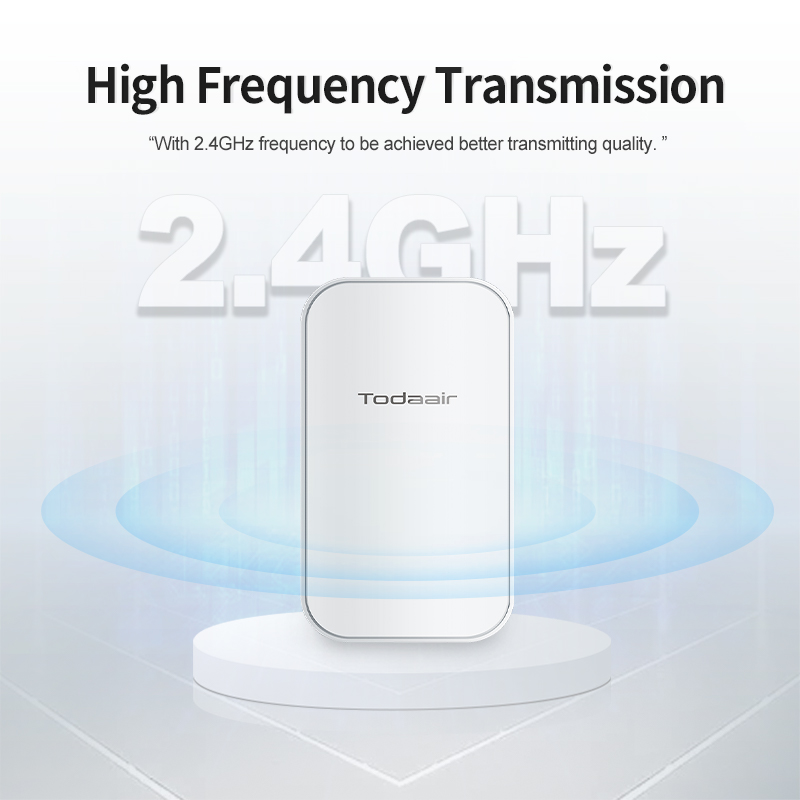

l Stable 2.4GHz Wireless Performance
Operating on the 2.4GHz frequency band, the system provides reliable wireless coverage for elevator monitoring and short-distance surveillance applications.
It delivers stable transmission performance for environments where wired network deployment is difficult.
l Durable IP65 Outdoor Protection
The device features an IP65-rated waterproof and dustproof enclosure with UV-resistant housing.
Designed to operate from -30°C to 65°C, it provides reliable performance in different weather conditions.

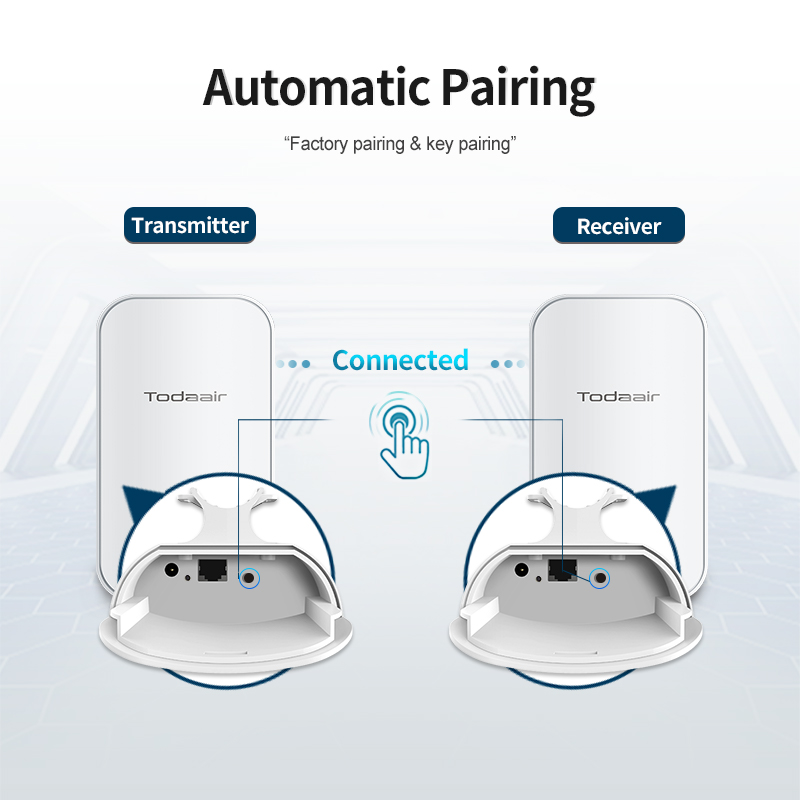

lAutomatic Pairing for Quick Deployment
The device supports 1-to-1 automatic pairing, allowing wireless communication to be established quickly after powering on.
This simplified setup process helps installers reduce installation time.

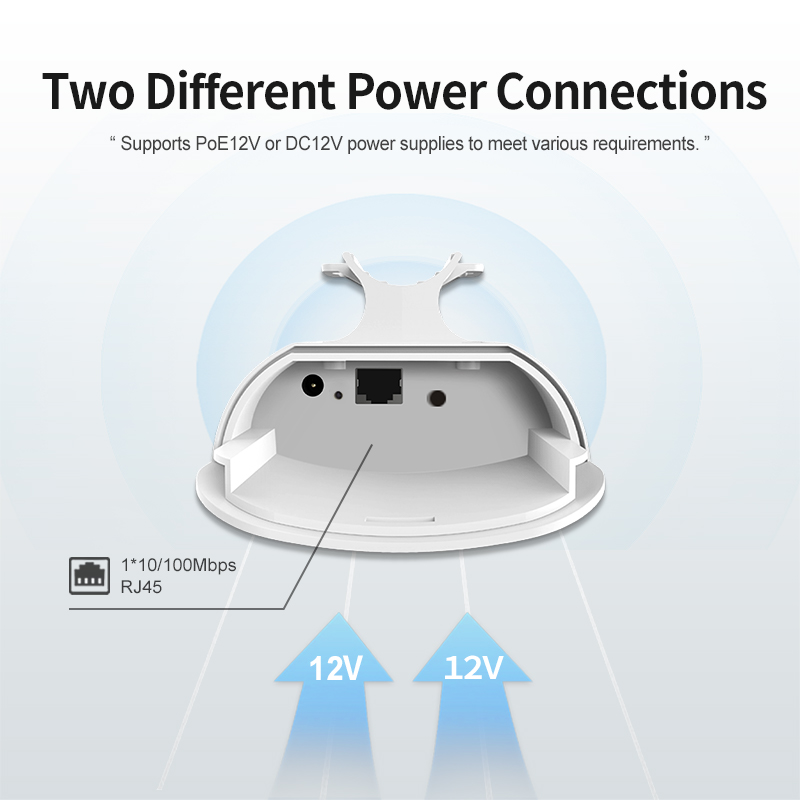

lPoE Installation for Flexible Deployment

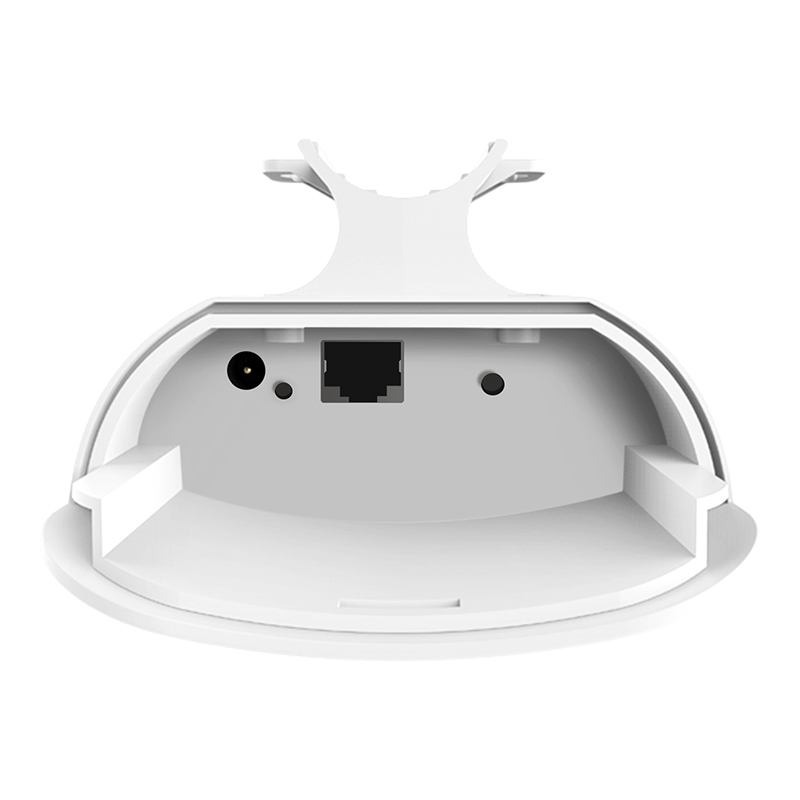

The device includes one 10/100Mbps RJ45 port and supports 12V PoE or DC 12V power input.
The PoE design enables power and data transmission through a single Ethernet cable, simplifying installation and reducing wiring requirements.
Looking for a reliable wireless bridge solution for your surveillance or networking project?
Contact Todaair at [email protected] for product information, customization options, and project support.
| Pole-Mount | |
 |
 |
|
1 Thread the metal strap through the slot on the device. |
2 Wrap the metal strap around the pole, then use a screwdriver to tighten the screw clockwise. |
| Wall-Mount | |
 |
 |
|
1 First align the hoist holes on the back of the device and screw into the wall, maintaining 3-5mm spacing between each screw. |
2 Insert the screws through the mounting holes on the back of the device and fasten the device to the wall. |
