PRODUCT OVERVIEW
1. Plug-and-Play Wireless Pairing for Fast Installation

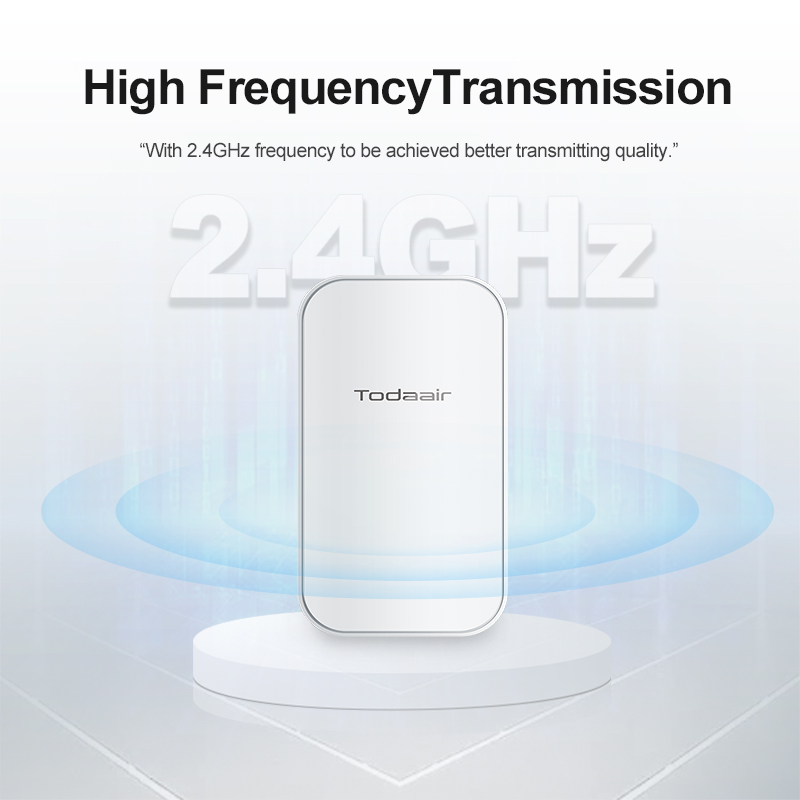

2. Reliable 2.4GHz Wireless Transmission up to 500m
3. 300Mbps Wireless Speed for HD Video Transmission
4. Outdoor IP65 Protection for Harsh Environments
5. Flexible Power and Installation Options
The TD3220YP is a 2.4GHz outdoor wireless bridge designed for reliable short-to-medium distance wireless network transmission in security surveillance and industrial applications.
With up to 300Mbps wireless transmission speed, built-in directional antenna, and plug-and-play automatic pairing, the TD3220YP enables fast deployment without complicated web configuration.
It supports point-to-point wireless connectivity for IP cameras, eliminating the need for long Ethernet cables in areas where wired installation is difficult or expensive.
Featuring an IP65-rated weatherproof enclosure, the device provides stable operation in outdoor environments exposed to rain, dust, and sunlight. Its compact design and flexible mounting options make it suitable for elevator monitoring, residential security, small warehouses, parking areas, and other surveillance projects requiring dependable wireless connectivity.

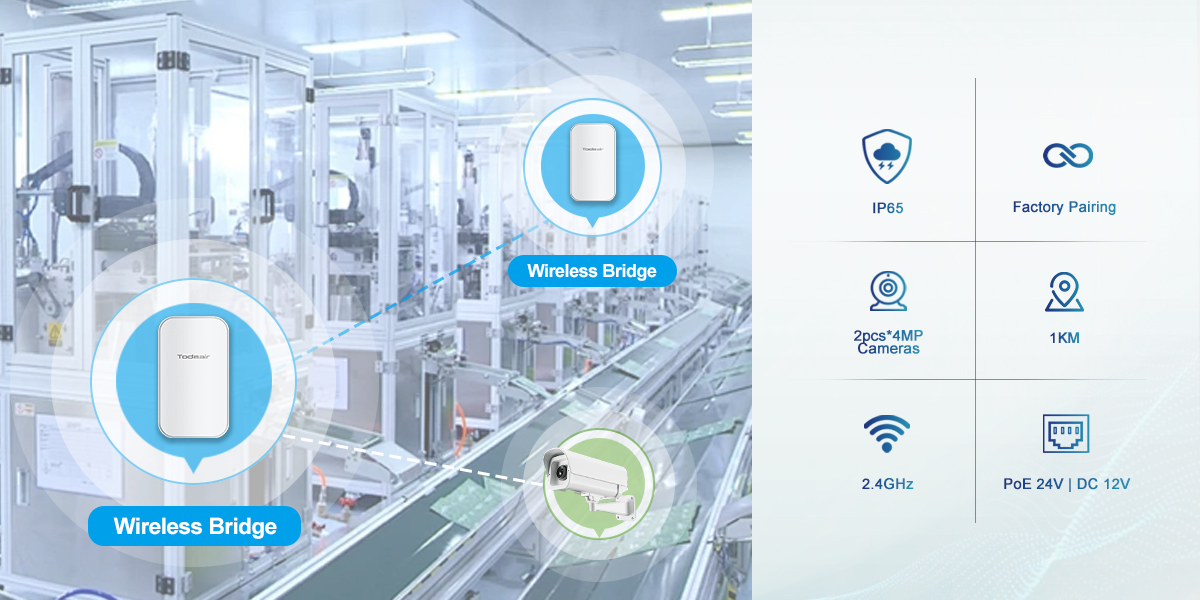

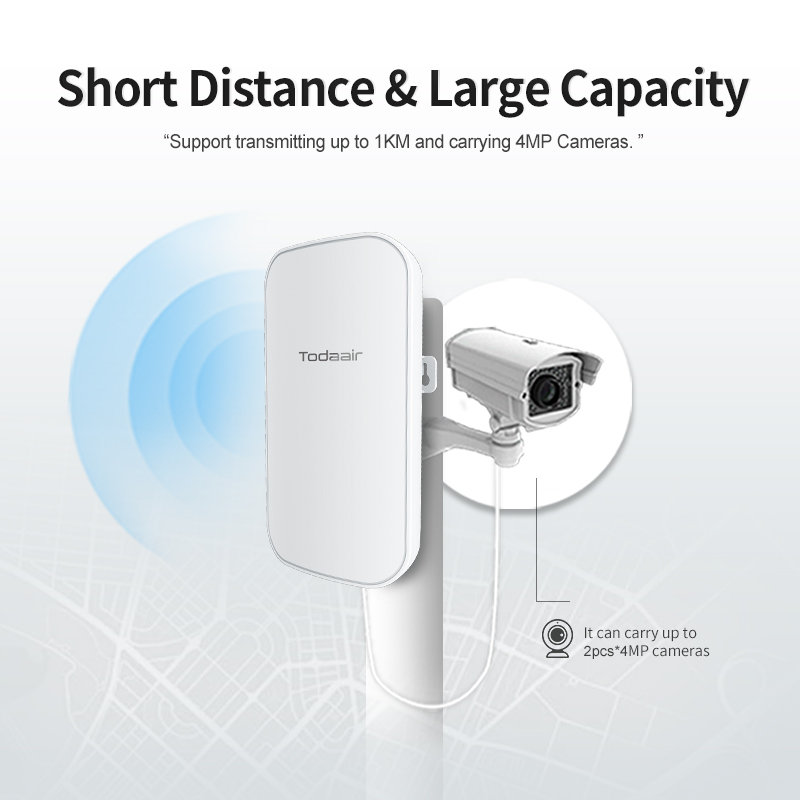

l Dedicated for 1km surveillance transmission, delivering wireless speeds up to 300Mbps, the system is equipped with 8dBi high-gain antennas and 20dBm transmission power. It ensures superior transmission capability and reception sensitivity for high-capacity HD video streaming, supporting connectivity for 2pcs*4MP HD cameras.
l Reliable Wireless Transmission for Security Surveillance Projects
Designed for CCTV and security monitoring applications, the TD3220YP delivers stable wireless connectivity with up to 300Mbps transmission speed. Equipped with a built-in directional antenna and optimized wireless performance, it provides reliable data transmission for IP cameras in locations where wired cabling is difficult to install.
It is suitable for applications such as elevator monitoring, residential security, small commercial buildings, parking areas, and remote surveillance points.

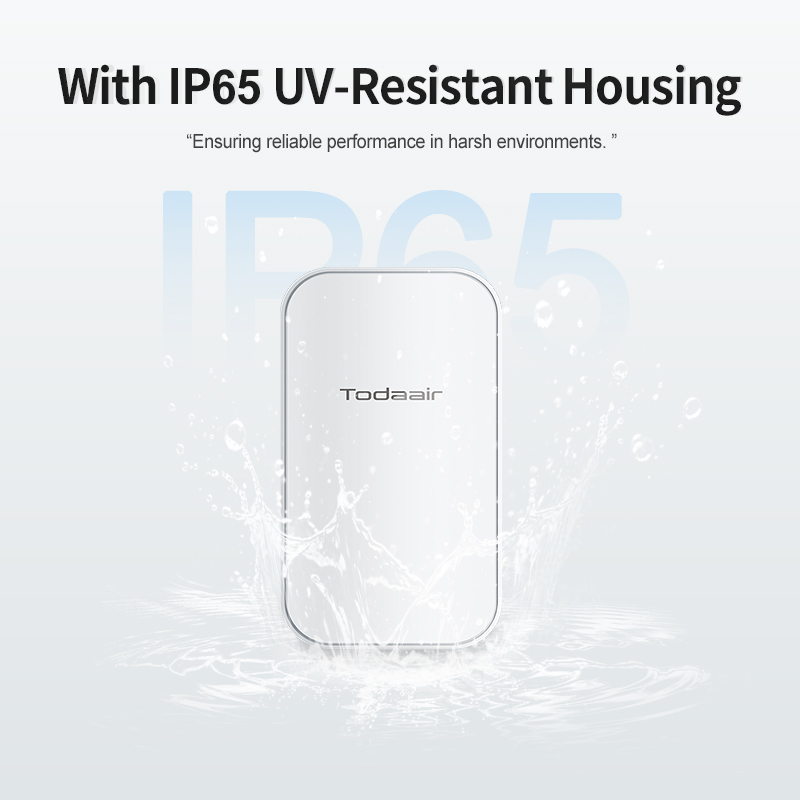

l Weatherproof Design for Outdoor Deployment
Built with an IP65-rated waterproof and dustproof housing, the TD3220YP is designed for outdoor installation and long-term operation.
The durable enclosure provides protection against rain, dust, and sunlight exposure, helping maintain stable performance in different environmental conditions.

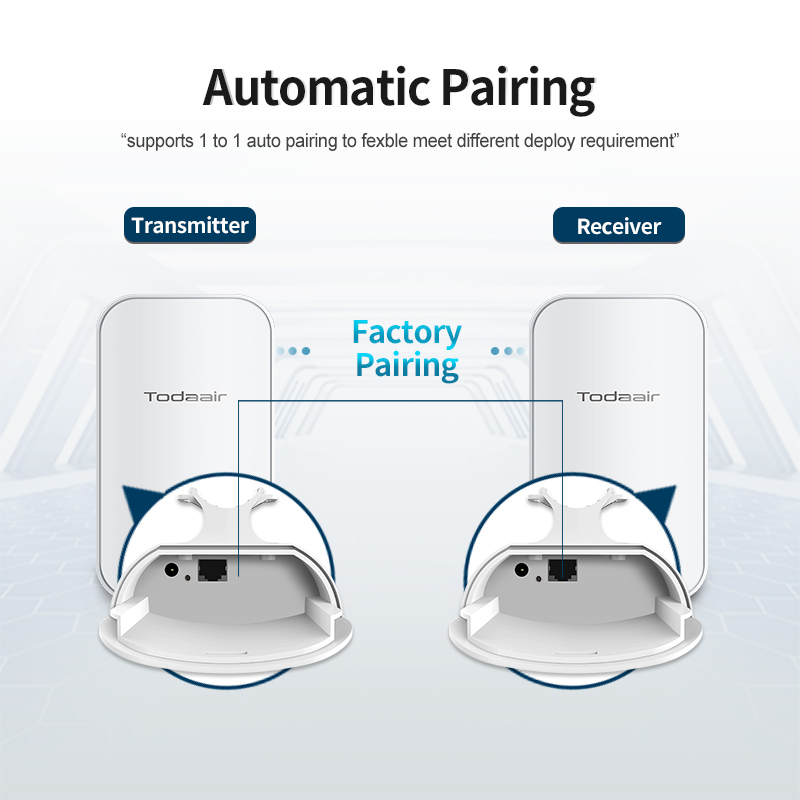

l Automatic Pairing for Efficient Project Deployment
The TD3220YP supports automatic 1-to-1 pairing, allowing two devices to establish a wireless connection immediately after powering on.
This plug-and-play design reduces configuration complexity and helps installers complete deployment faster, especially for multiple surveillance installation projects.

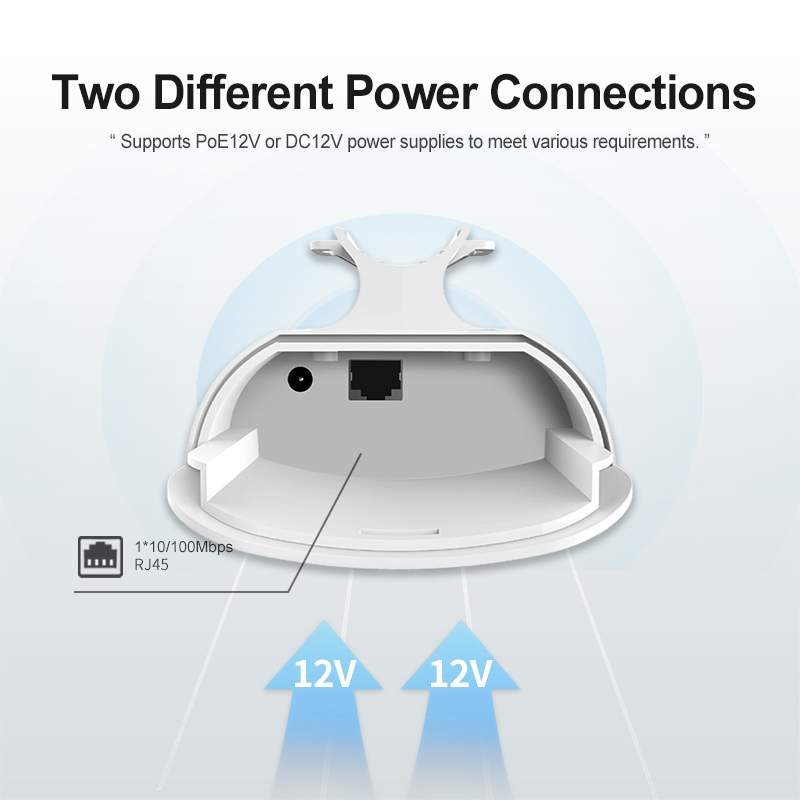

l Flexible Power Supply and Network Connection
Equipped with a 10/100Mbps RJ45 Ethernet port, the TD3220YP supports reliable data communication with IP cameras, switches, and other network devices.
The device supports DC 12V and PoE 12V power options, allowing flexible installation according to different project requirements.
l Remote Management with Todaair APP
The TD3220YP supports Todaair APP management, enabling remote device monitoring and convenient maintenance.
Through the APP platform, users can check device status, view network information, and improve maintenance efficiency for deployed wireless bridge systems.
Looking for a reliable wireless bridge solution for your surveillance or networking project?
Contact our sales team for product information, OEM cooperation, and project support:[email protected]
| Pole-Mount | |
 |
 |
|
1 Thread the metal strap through the slot on the device. |
2 Wrap the metal strap around the pole, then use a screwdriver to tighten the screw clockwise. |
| Wall-Mount | |
 |
 |
|
1 First align the hoist holes on the back of the device and screw into the wall, maintaining 3-5mm spacing between each screw. |
2 Insert the screws through the mounting holes on the back of the device and fasten the device to the wall. |
