PRODUCT OVERVIEW
1. Automatic Pairing for Quick Installation
- Faster installation
- Reduced technical requirements
- Improved project efficiency
2. Reliable 5.8GHz Wireless Transmission
- Stable monitoring connection
- Better video quality
- Suitable for continuous surveillance
3. Long-Range Transmission with High-Gain Antenna
- Flexible deployment
- Less reliance on wired infrastructure
- Suitable for remote monitoring locations
4. Outdoor IP65 Protection for Long-Term Operation
- Stable outdoor operation
- Reduced maintenance requirements
- Longer service life
5. Flexible PoE and Network Management Support
- Flexible installation options
- Easier project maintenance
- Better device management
TD1520YP 5.8GHz Wireless Bridge for CCTV and Security Monitoring
The TD1520YP is a reliable 5.8GHz wireless bridge designed for fast and stable CCTV transmission in applications where wired connections are difficult to install.
Featuring automatic pairing, PoE power support, and an IP65-rated outdoor enclosure, the device enables simple deployment for elevator monitoring, security surveillance, factories, and other commercial projects.
With wireless throughput up to 150Mbps and excellent transmission sensitivity, the TD1520YP provides a cost-effective wireless networking solution for installers and system integrators.
l Long-Range Wireless Transmission for Surveillance Projects

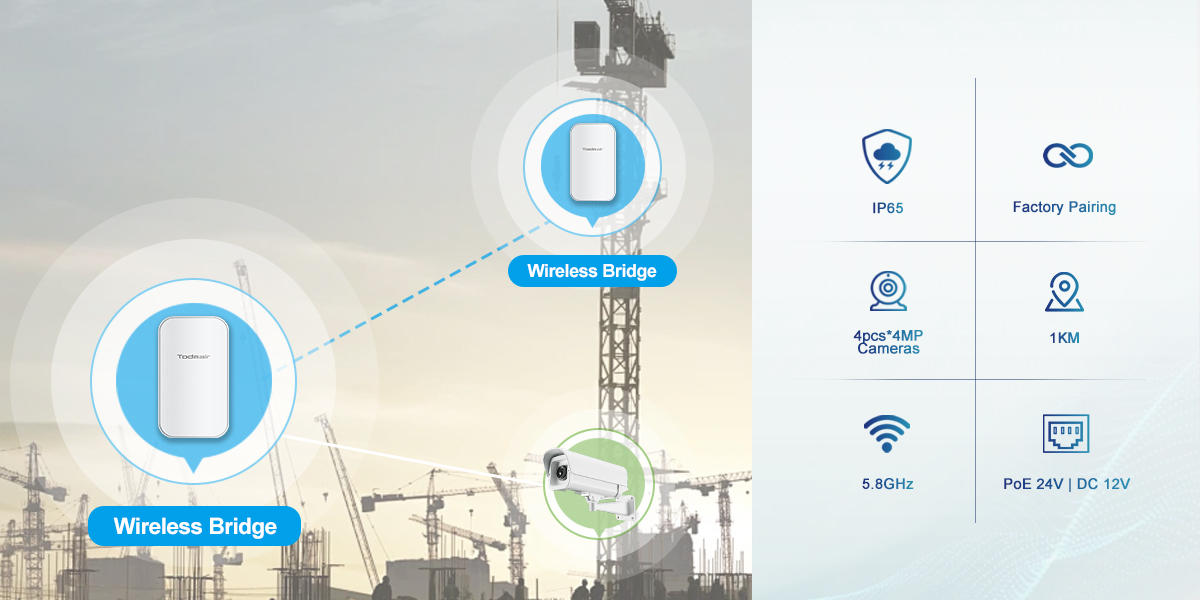

Designed for 1km wireless surveillance transmission, the system delivers up to 150Mbps wireless throughput with a 12dBi high-gain antenna and 25dBm transmission power.
It provides strong transmission capability and excellent receiving sensitivity for stable HD video streaming, supporting connectivity with up to four 4MP IP cameras.
l Reliable 5.8GHz Wireless Performance
Operating on the 5.8GHz frequency band, the system provides wider bandwidth, cleaner channels, and reduced interference to maintain reliable wireless transmission quality.
It is suitable for surveillance projects where stable connectivity and continuous video transmission are required.
l Rugged Outdoor Housing for Harsh Environments
The device features an IP65-rated waterproof and dustproof enclosure with UV-resistant housing.
Designed to operate from -30°C to 65°C, it provides reliable performance in outdoor environments affected by rain, dust, sunlight, and temperature fluctuations.
lFast Deployment with DIP Configuration
The 10-digit DIP switch enables plug-and-play deployment with 128 configurable groups for easy PTP/PTMP pairing.
No computer-based configuration is required, helping installers reduce setup time and improve project efficiency.
lPoE Installation and Remote Management Capability
The device includes 2 × 10/100Mbps RJ45 ports and supports 48V PoE or DC 12V power input.
The integrated PoE function simplifies installation by combining power and data transmission through one Ethernet cable.
The system is also compatible with Todaair APP for centralized device management, including network status monitoring and topology visualization.
Looking for a reliable wireless bridge solution for your surveillance or networking project?
Contact Todaair at [email protected] for product information, customization options, and project support.
| Pole-Mount | |
 |
 |
|
1 Thread the metal strap through the slot on the device. |
2 Wrap the metal strap around the pole, then use a screwdriver to tighten the screw clockwise. |
| Wall-Mount | |
 |
 |
|
1 First align the hoist holes on the back of the device and screw into the wall, maintaining 3-5mm spacing between each screw. |
2 Insert the screws through the mounting holes on the back of the device and fasten the device to the wall. |
